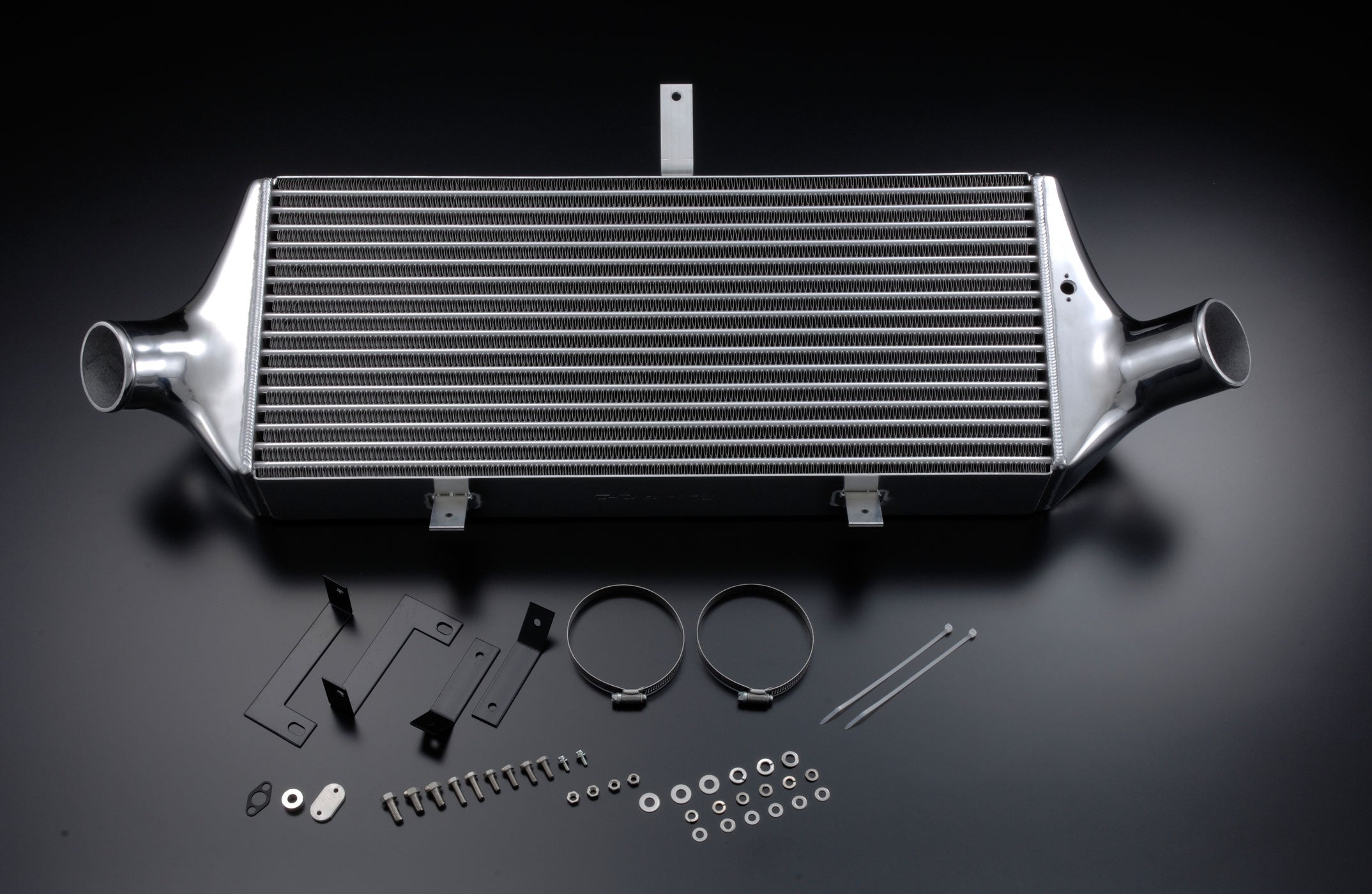

GREDDY INTERCOOLER KIT T-29F BNR33 - (12020216)
Skyline GTR BCNR33 |
RB26DETT 95.01~98.12 |
INTERCOOLER KIT |
TYPE29F H302/L710/W100 |
Genuine replacement | 12020216 |
Make: Nissan
Model: Skyline GT-R (R33)
Year: 1995-98

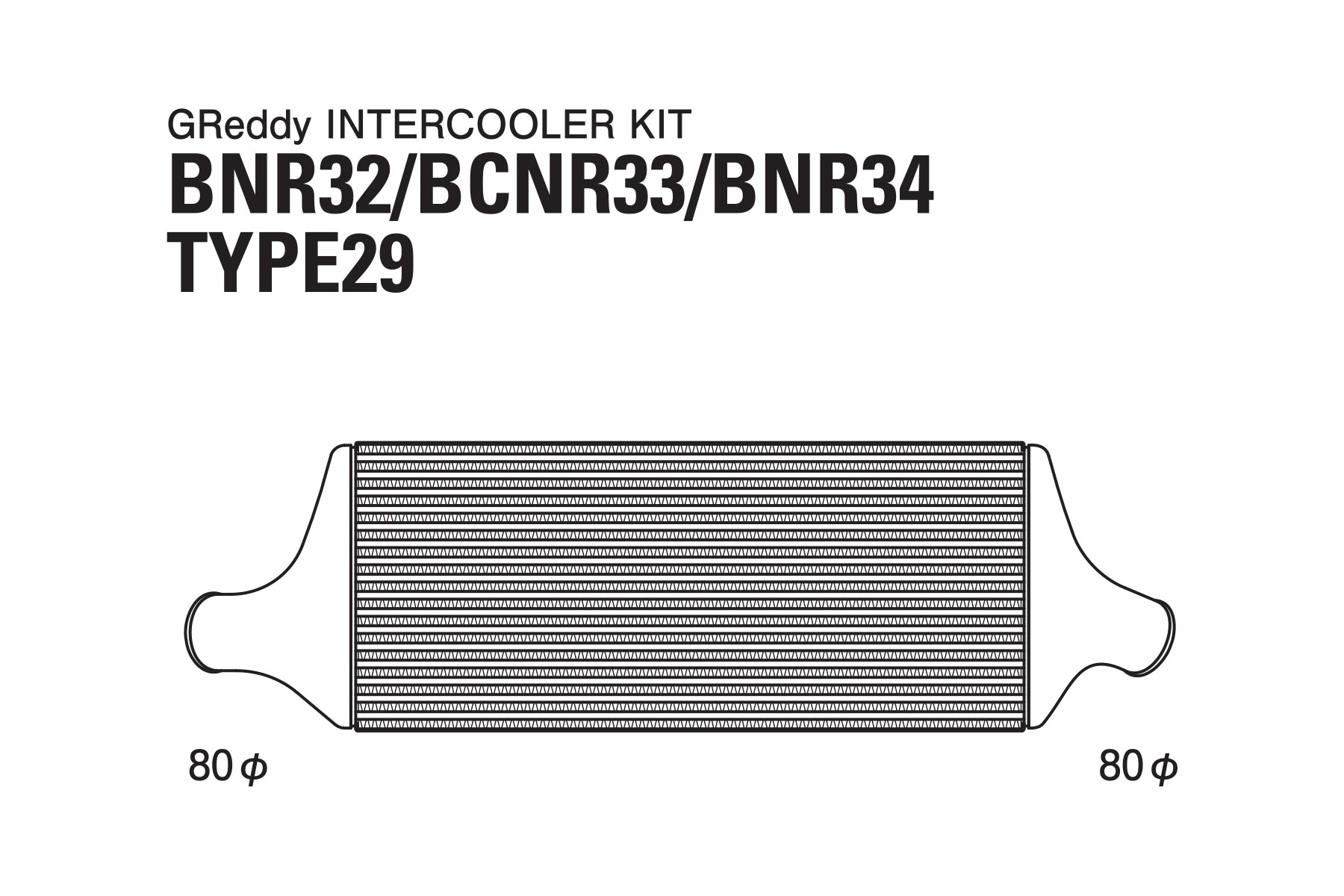

Genuine replacement TYPE29F IC outlet diameter 80Φ
Specification
- Core type: TYPE29F
- Core size: H302/L710/W100
- Installation position: genuine replacement
Remarks
- Compatible with genuine turbine & GReddy turbine kit.
- For MT only.
- * O/C kit can be installed at the same time
- * Pipe SET can be installed at the same time
- *Reinforce processing required
- *Bumper processing required
Compatible model: Skyline GTR
Compatible model:
BCNR33 Year : 95.01-98.12
CODE: 12020216
Chassis: BNR32
Engine: RB26DETT

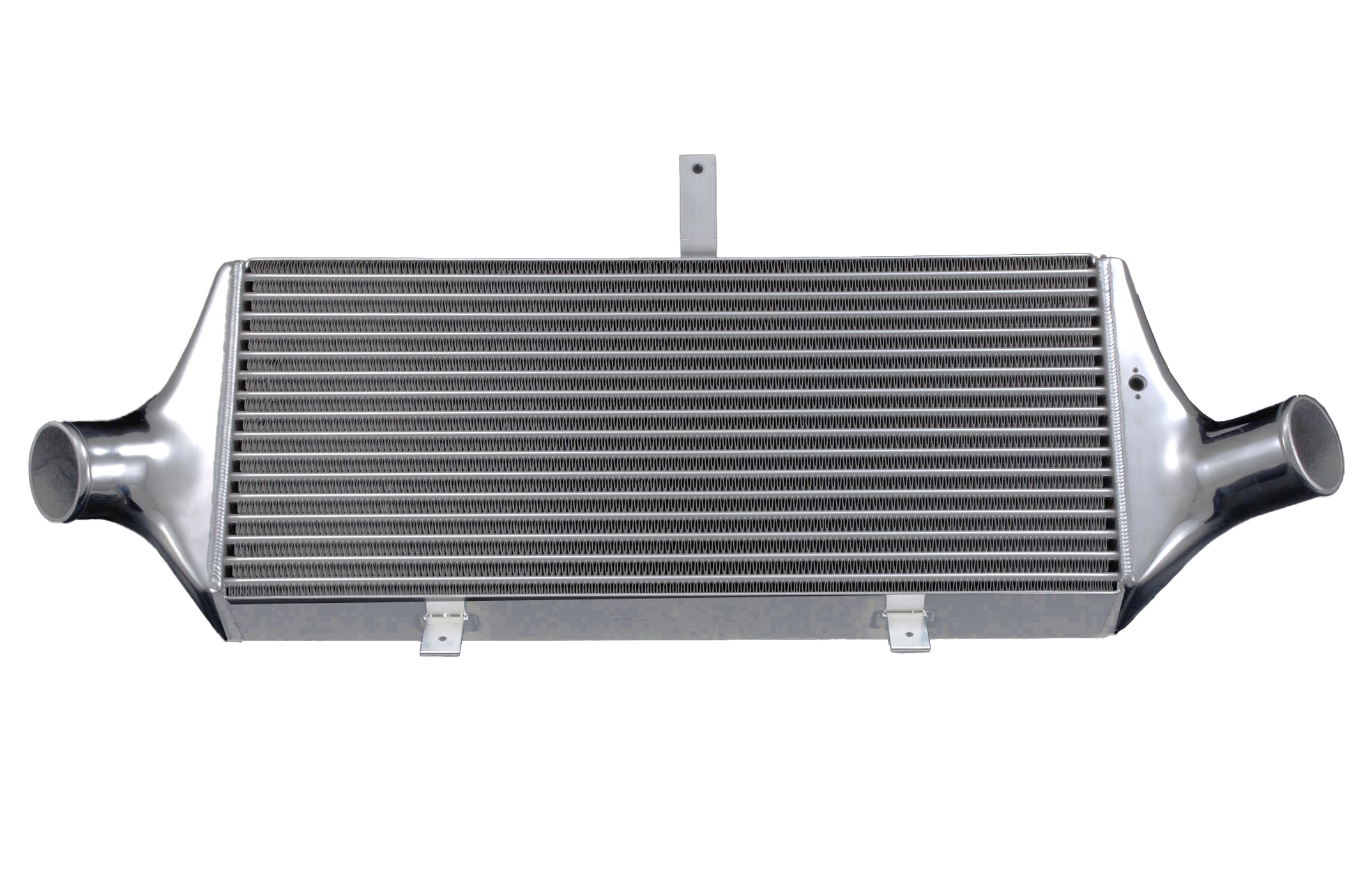

Type: Upgraded Large Type 29 (L710mm X H302mm X W100mm) intercooler core with cast GReddy endtanks, especially designed for the RB26DETT of the BCNR33 Skyline GT-R. 80mm inlet and outlet. - for stock intake plenum.
Product features
- Emphasizes cooling efficiency, maximizes charging efficiency, and supports high power and high boost.
- The SPEC-R HG has the side tank and aluminum pipe buffed to a mirror finish, while the SPEC-R has a barrel finish. In addition, the core is CCP treated to improve corrosion resistance.
- The inner fin uses an offset inner fin. The SPEC-R, which aims for high power and high boost, uses an "offset inner fin."
-
Optimized pressure loss and cooling effect to support high-level high boost tuning.
*For competition (race) use ONLY. Check legality of aftermarket products with your local state, county, city authorities before purchasing.
**This product is illegal to be driven on public roads in the USA.
