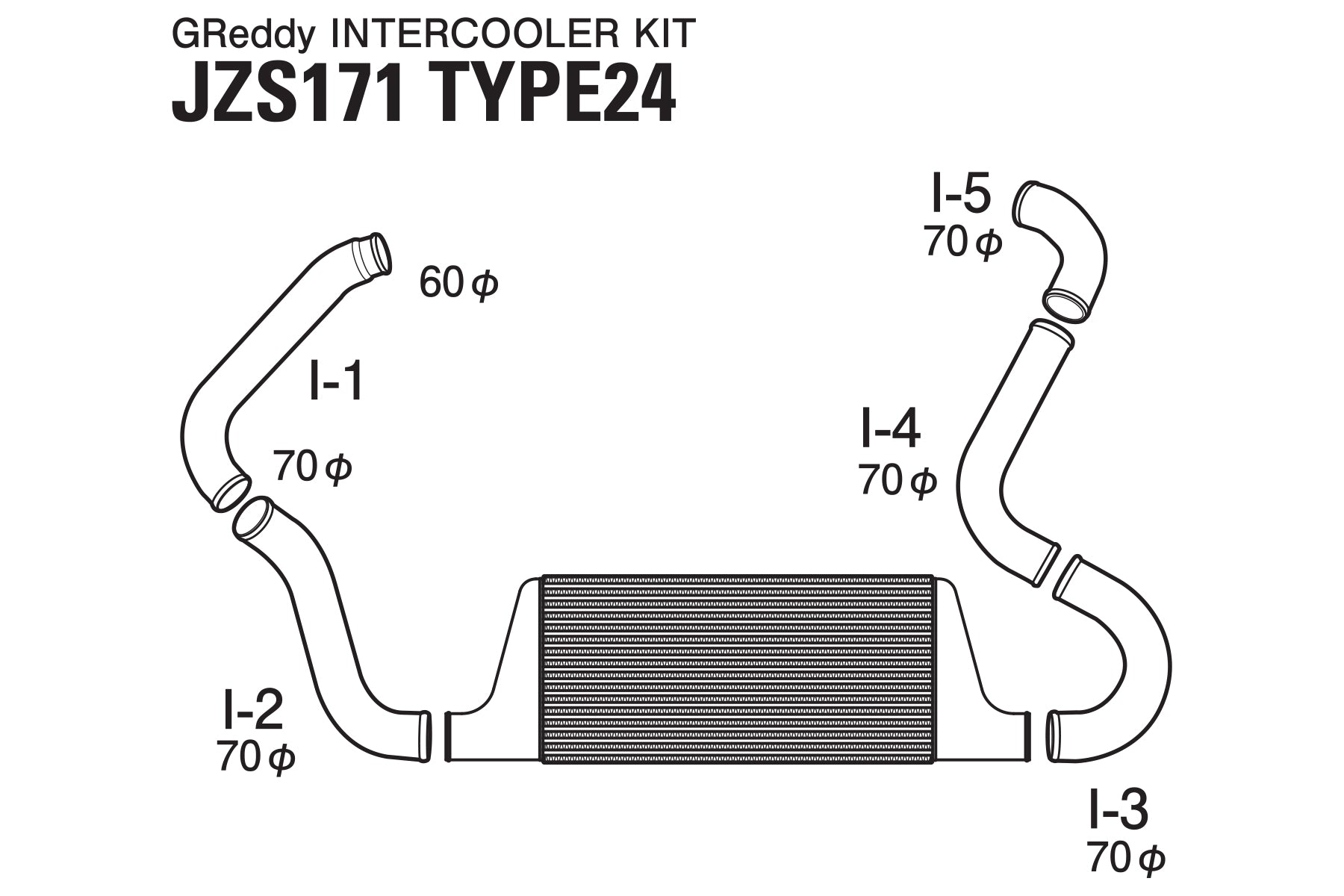

GREDDY INTERCOOLER KIT T-24F JZS171 - (12010213)

Product features

■Prioritizes cooling efficiency, maximizes filling efficiency, and supports high power and high boost
■Adopts offset inner fins to optimize pressure loss and cooling performance, enabling high boost tuning

Specifications

Core Type: TYPE24E
Core Size: H184/L600/W66

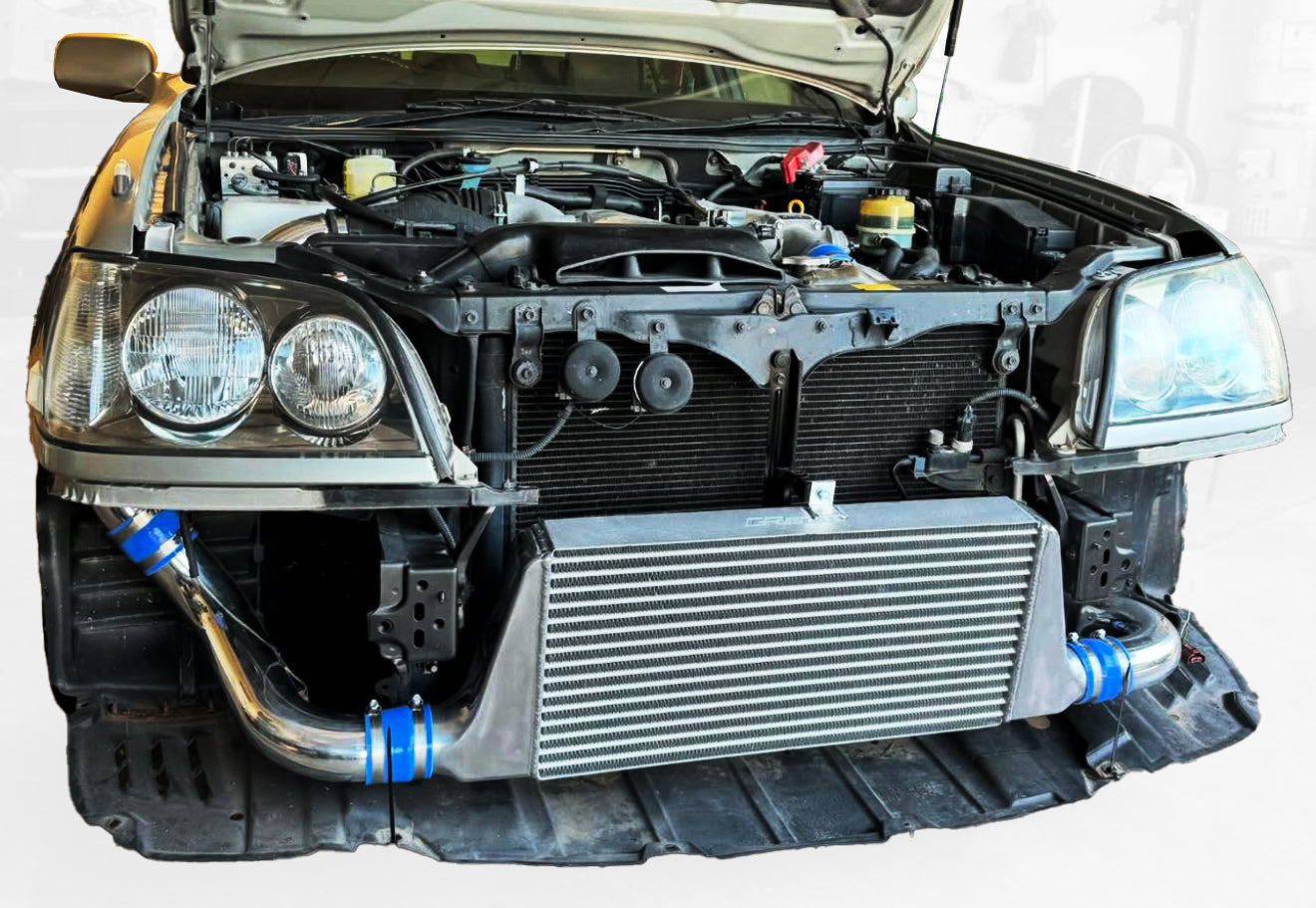

Installation Position: In front of radiator

[Compatible Vehicle]Toyota Crown

Compatible Model: JZS171
Year: 99.09 – 03.11
P/N : 12010213

Remarks

• For stock turbo only.
• For automatic transmission only.
• * Cannot be installed simultaneously with O/C kit
• * Reinforcement modification required
• * Bumper modification required

GReddy Intercooler Kits
The addition of an efficient, light-weight tube and fin GReddy intercooler is one of the best ways to safely increase horsepower in a turbocharged engine. By reducing the engine's inlet temperatures, a denser air charge will enter the engine; this can make more horsepower at the same boost level and even more power at higher boost levels. Even if there is a factory-installed intercooler, generally these stock units are not ideal even for factory boost levels. They are usually mounted in awkward locations and become very susceptible to heat saturation. They are not ideal for increased boost levels.

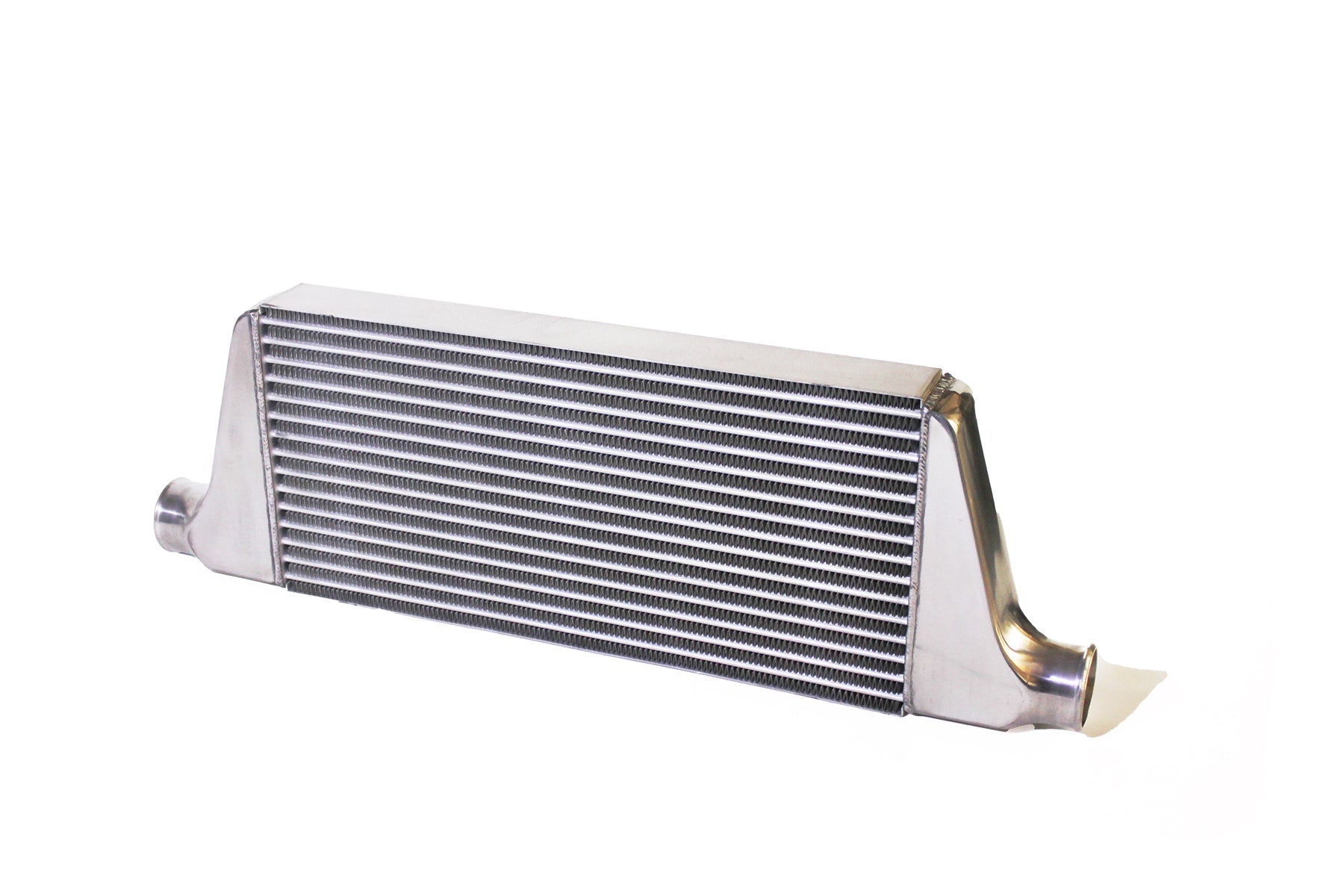

GReddy Type-F cores feature a high heat-dissipating "off-set, inner-fin" technology.  They are recommended for medium to high boost levels on higher horsepower or upgraded turbo engines.  The larger internal surface area provides a superior cooling efficiency for radiating excessive heat and minimizing heat soak.  The GReddy Type-F intercooler is a light-weight tube and fin design.

*For competition (race) use ONLY. Check legality of aftermarket products with your local state, county, city authorities before purchasing.
**This product is illegal to be driven on public roads in the USA.
