OIL FILTER RELOCATION KIT FD3S - (12044902)
12044902
| FD3S | 13B-REW | 91.11〜02.08 | LH strut side |
Engines with center bolt M20 × P1.5 cannot be installed on vehicles with I/J holders require an oil filter with a center bolt size of 3/4-16UNF. |
12044902 |
Engine: Center bolt size: M20xP1.5
Filter: 3/4-16UNF

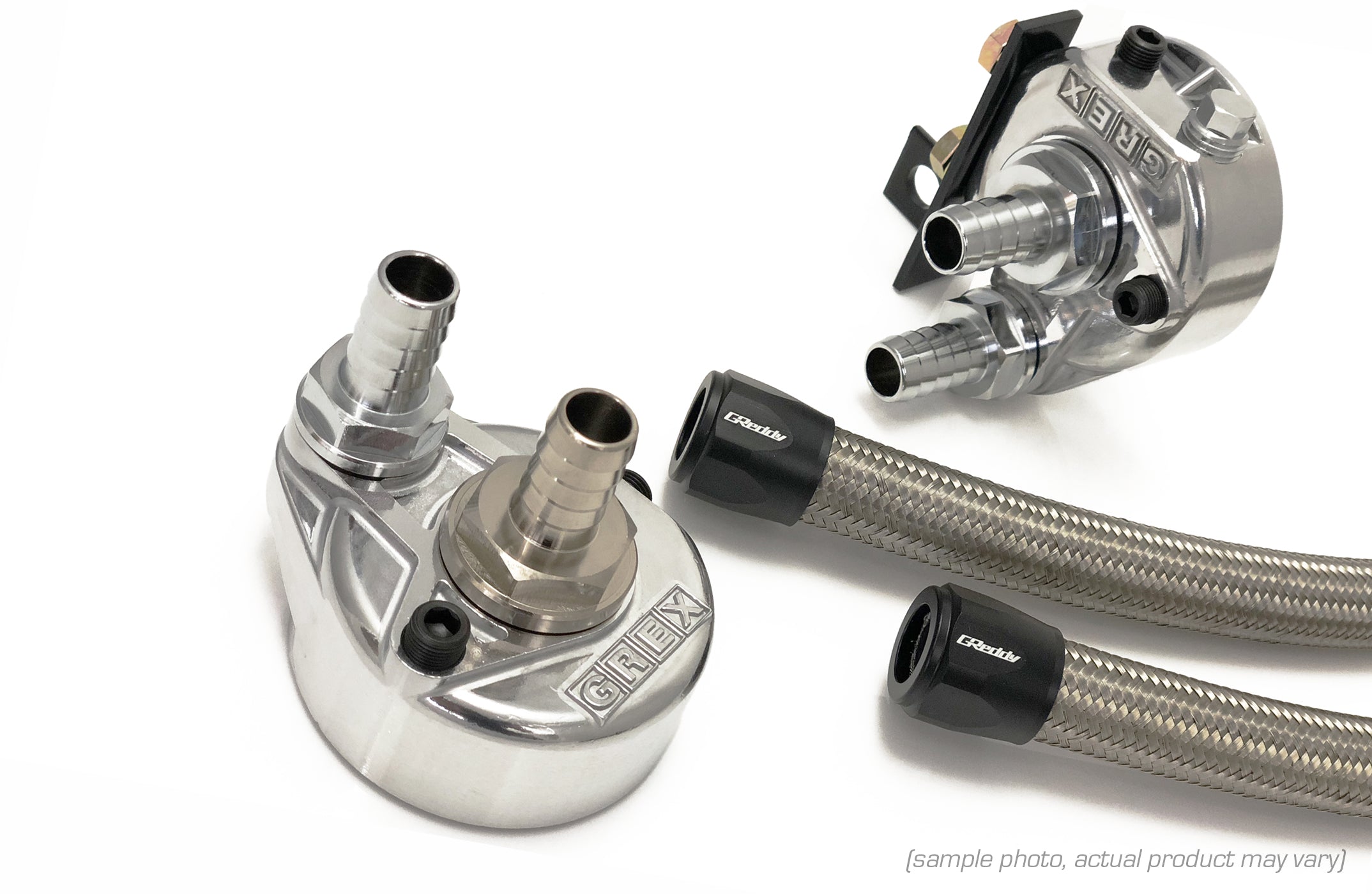

Application specific Oil Filter Relocation Kit (with -10 slip-on hoses and clamp fittings)
This kit allows you to economically relocate the factory oil filter for easy maintenance with a sporty look. Billet adapters allow for easy installation of (1/8BSP and/or M12xP1.25) gauge sensors, such as oil pressure and oil temperature. Also included are brackets, GReddy clamp fittings and braided-hoses (use of GReddy QX-01, QX-03 or 3/4-16UNF Filter req.)
Also see Optional AN Fitting for Type G and Type F Remote Oil Blocks to convert slip-on fittings to AN fittings. (must also change Hose Fittings to AN style)
GReddy M18xP1.5 gold -10AN Fitting with O-ring - 12005103
Oil Reloc. Block Center Fitting (Male 3/4x16UNF / -10AN) - 12401142
Oil Reloc. Block Center Fitting (Female 3/4x16UNF / -10AN) - 12401145
Oil Reloc. Block Center Fitting (Female M20xP1.5 / -10AN) - 12401149
