OIL FILTER RELOCATION KIT BNR34 - (12024912)

PRE ORDER

12024912

Engine: Center bolt size: 3/4-16UNF
Filter: 3/4-16UNF

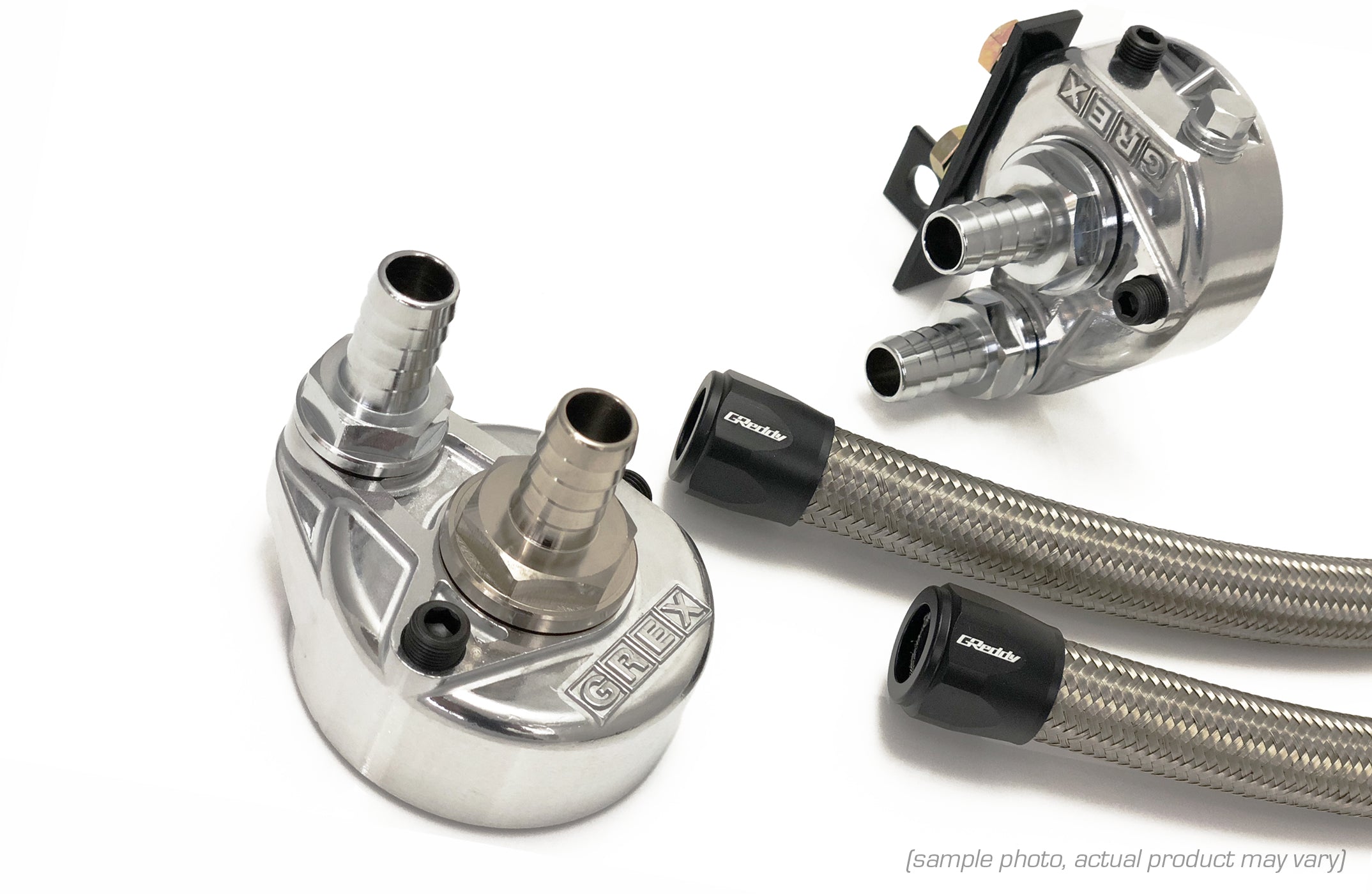

Application specific Oil Filter Relocation Kit (with -10 slip-on hoses and clamp fittings)
This kit allows you to economically relocate the factory oil filter for easy maintenance with a sporty look. Billet adapters allow for easy installation of (1/8BSP and/or M12xP1.25) gauge sensors, such as oil pressure and oil temperature. Also included are brackets, GReddy clamp fittings and braided-hoses (use of GReddy QX-01, QX-03 or 3/4-16UNF Filter req.)

Also see Optional AN Fitting for Type G and Type F Remote Oil Blocks to convert slip-on fittings to AN fittings. (must also change Hose Fittings to AN style)

GReddy M18xP1.5 gold -10AN Fitting with O-ring - 12005103
Oil Reloc. Block Center Fitting (Male 3/4x16UNF / -10AN)  -  12401142
Oil Reloc. Block Center Fitting (Female 3/4x16UNF / -10AN)  -  12401145
Oil Reloc. Block Center Fitting (Female M20xP1.5 / -10AN)  -  12401149
