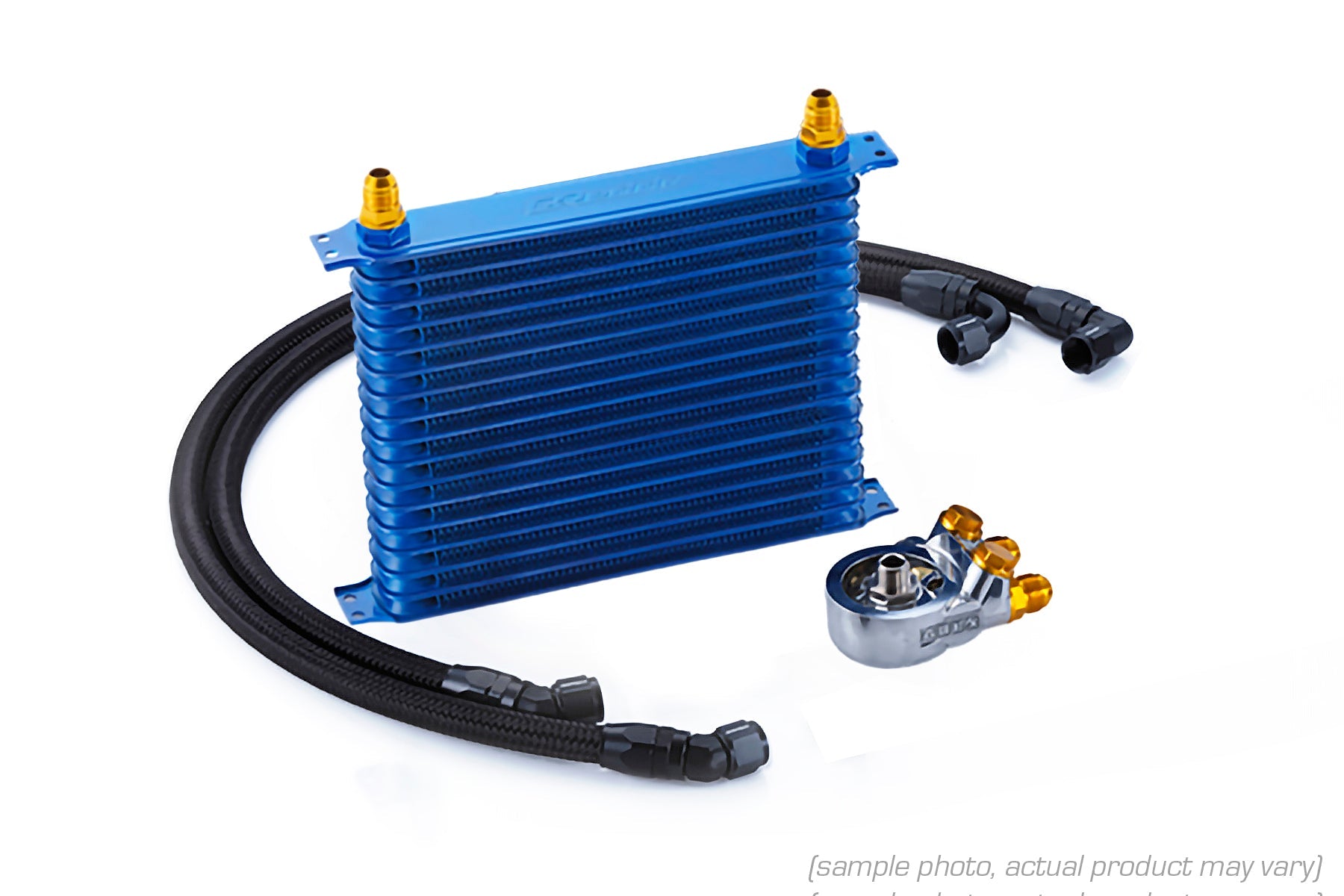

OIL COOLER NS1610G/STD JZA80 - (12014615)

Oil cooler kit STD 16row for JZA80

Product features

• This is an ideal oil cooler that uses a large capacity core with offset fins in the core tube to increase heat dissipation and reduce pressure loss.
• A sandwich block is used in the standard oil filter position to reduce the number of parts and achieve efficient installation work.

Product Specifications

• Core type: NS1610G
• Thermostat: Built-in block
• Core installation position: In front of radiator
• Center bolt size: 3/4-16UNF

Compatible models: TOYOTA Supra

• Vehicle model: JZA80
• E/G model: 2JZ-GTE
• Year: 93.05-02.08
• CODE:12014615

remarks

• Cannot be installed on AT vehicles
• rear car unconfirmed
• Under cover, fender splash shield processing required
