OIL COOLER NS1310G/STD Z33 - (12024633)

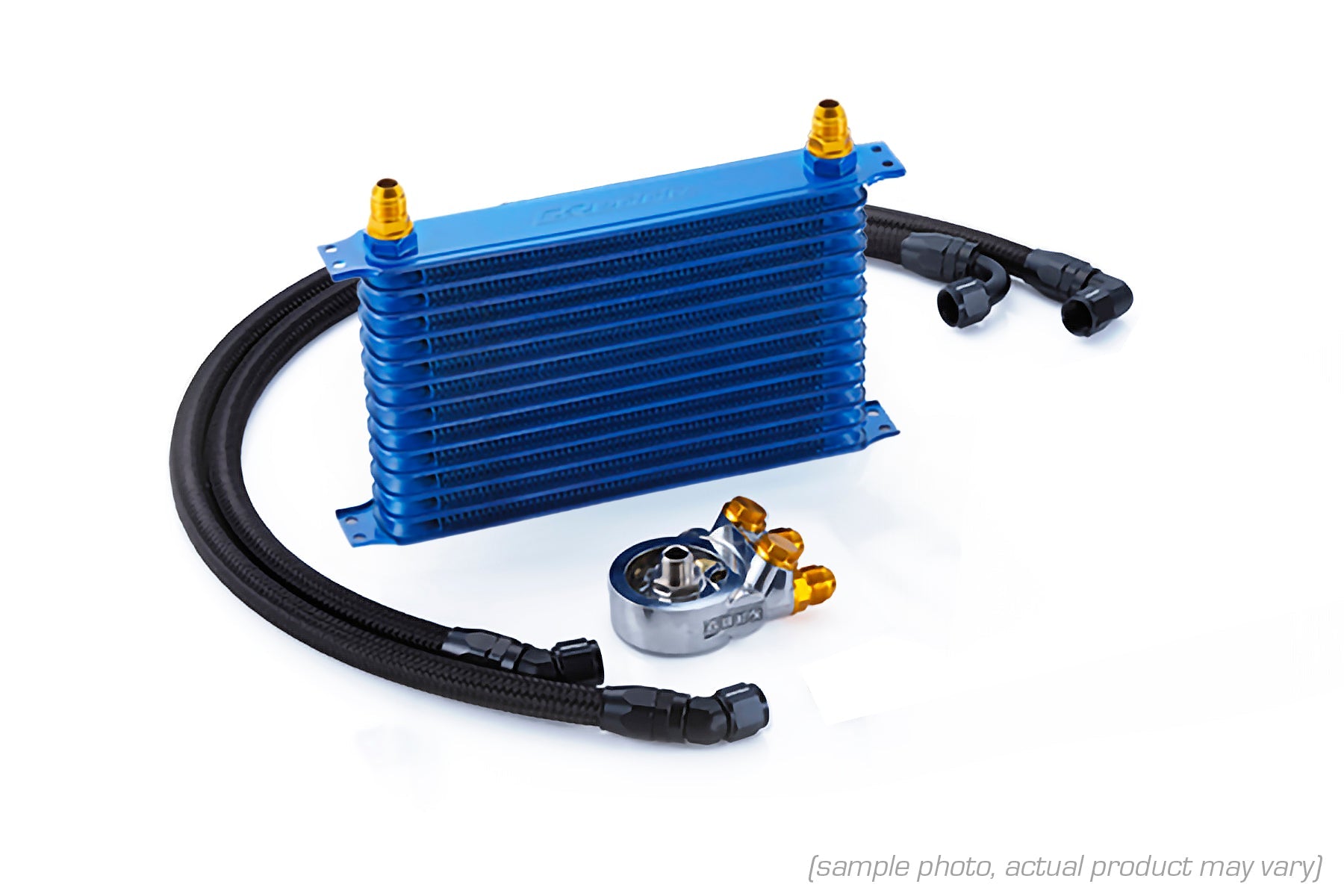

Oil cooler kit STD 13row for Z33

Product features

• This is an ideal oil cooler that uses a large capacity core with offset fins in the core tube to increase heat dissipation and reduce pressure loss.
• A sandwich block is used in the standard oil filter position to reduce the number of parts and achieve efficient installation work.

Product Specifications

• Core type: NS1310G
• Thermostat: Built-in block

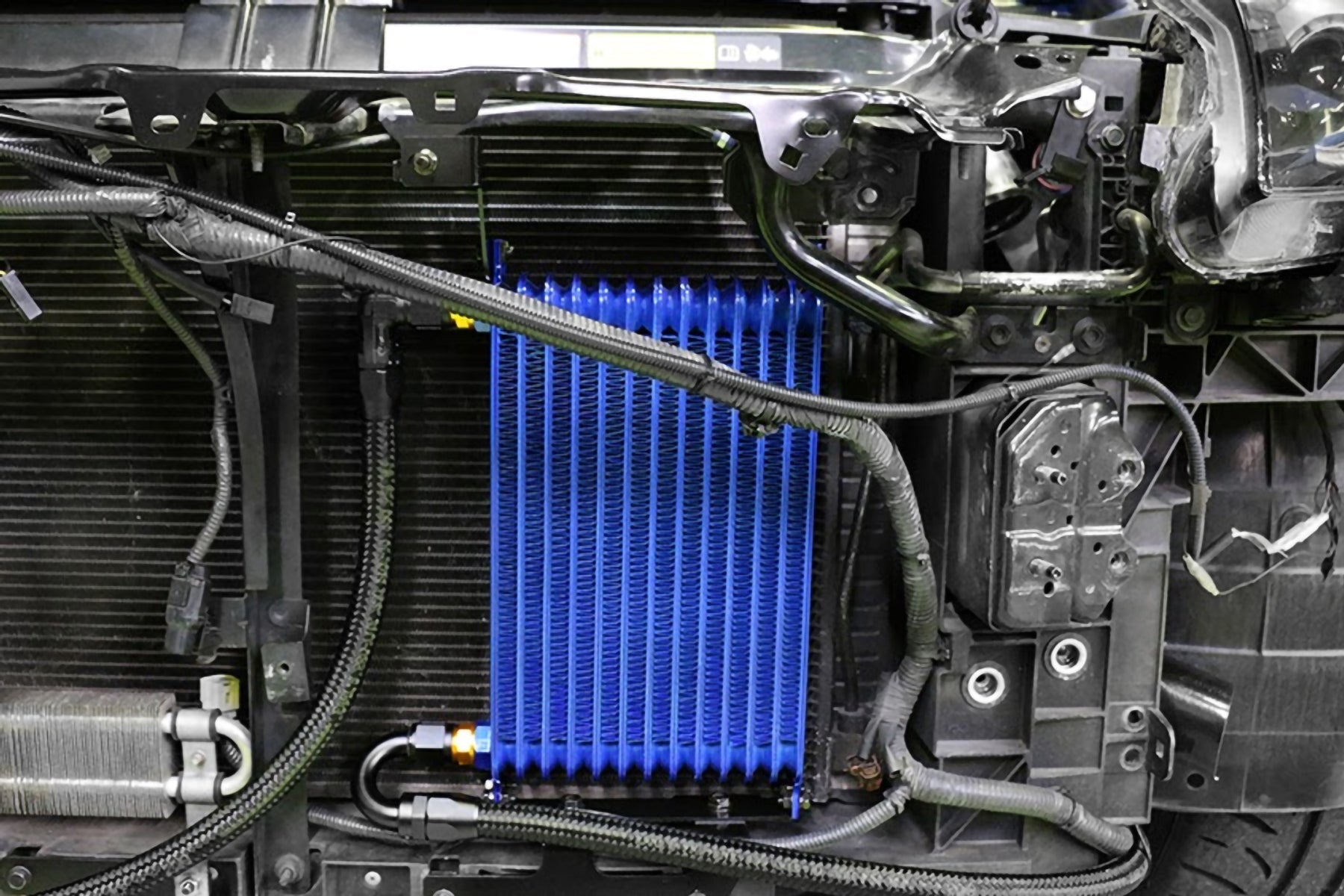

• Core installation position: In front of radiator
• Center bolt size: M20 x P1.5

Compatible models: NISSAN Fairlady Z

• Vehicle model: Z33
• E/G model: VQ35DE
• Year: 2002.07-2006.12
• CODE:12024633

remarks

• A/T vehicle not confirmed.
• Engines with center bolt M20 x P1.5  require an oil filter with center bolt size 3/4-16 UNF (GReddy oil filters OX-01, OX-02, OX-03 are compatible).
