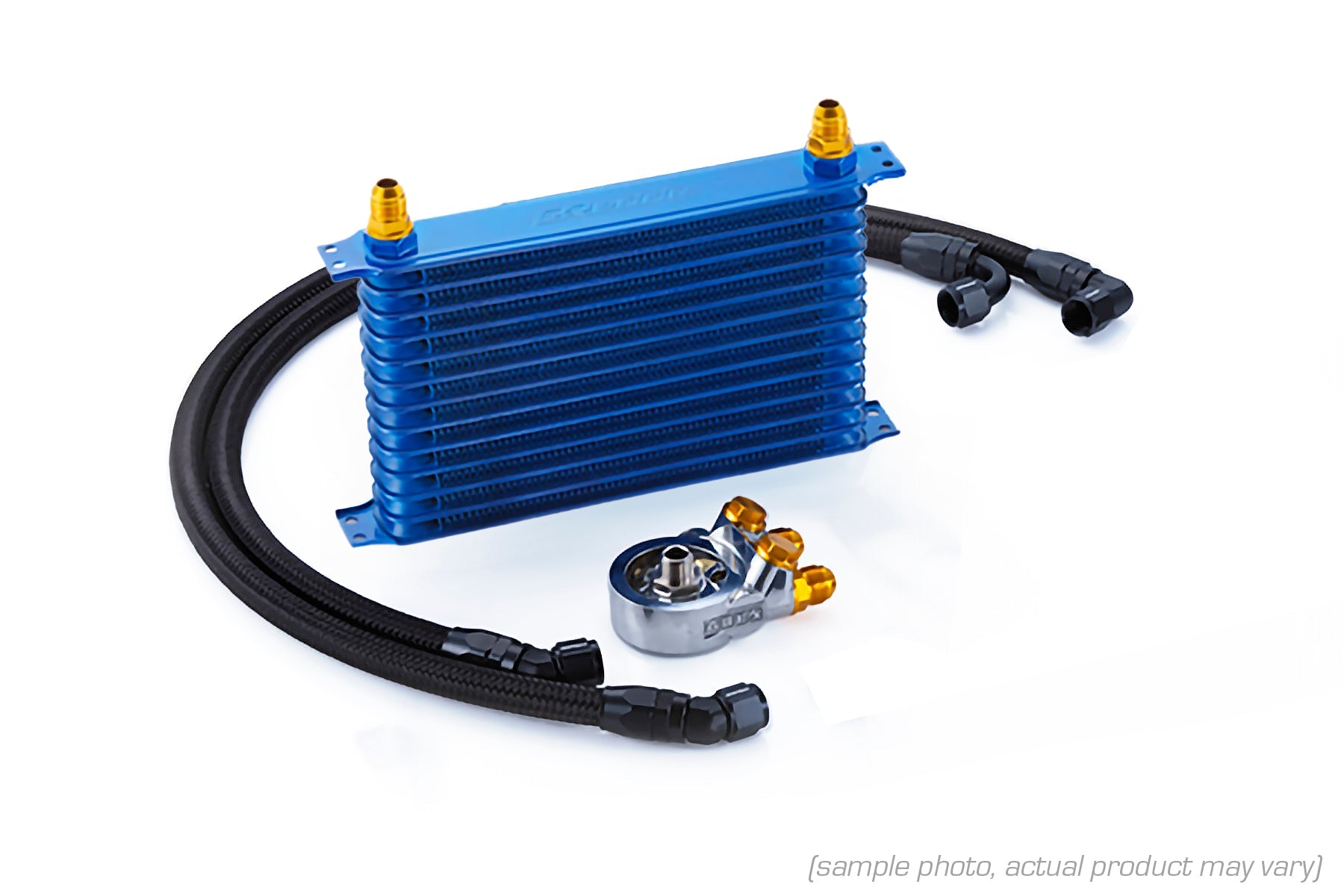

OIL COOLER NS1310G/STD AP1 - (12054607)

Product features

• This is an ideal oil cooler that uses a large capacity core with offset fins inside the core tube to increase heat dissipation and reduce pressure loss.
• A sandwich block is used in the standard oil filter position to reduce the number of parts and achieve efficient installation work.

Product Specifications

• Core type: NS1310G
• Thermostat: Built-in block
• Core installation position: In front of radiator
• Center bolt size: M20 x P1.5

Compatible models: HONDA S2000

• Vehicle model: AP1
• E/G model: F20C
• Year: 99.04~03.09
• CODE:12054607

remarks

• Cannot be installed on VGS (Variable Gear Steering) vehicles.
• Engines with center bolt M20 x P1.5  require an oil filter with center bolt size 3/4-16 UNF (GReddy oil filters OX-01, OX-02, and OX-03 are compatible).
• Undercover processing required.
