OIL COOLER KIT STD Z33 16 ROW FRONT MOUNT - (12024639)
GReddy Oil Cooler Kit Standard Type Z33 (VQ35HR) 16row
Product features
⚫︎This is a standard type oil cooler kit developed for Z33 (model equipped with VQ35HR) equipped with GReddy bolt-on turbo kit (T517Z-8㎠ TWIN). (Can also be installed on NA vehicles)

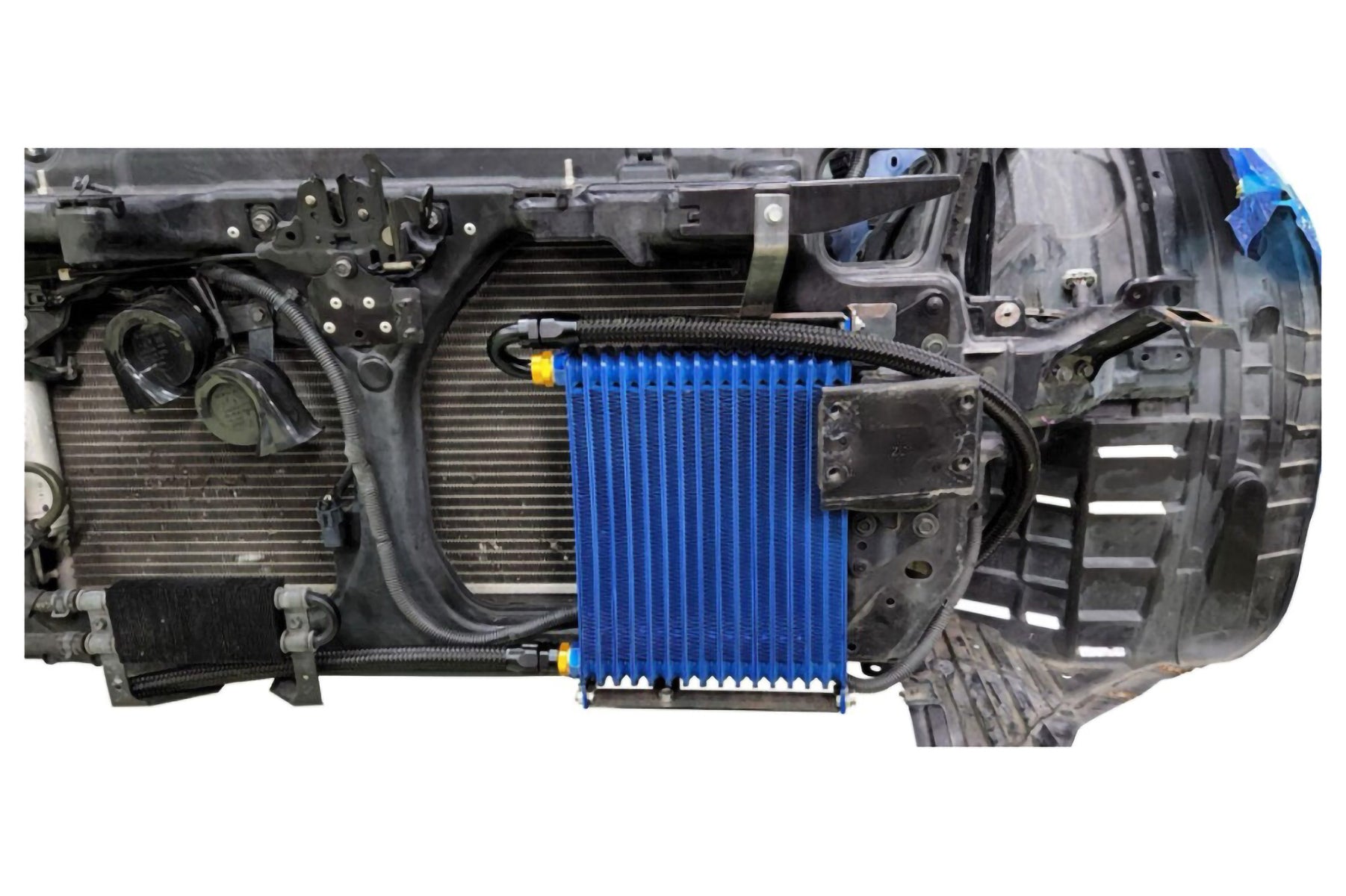

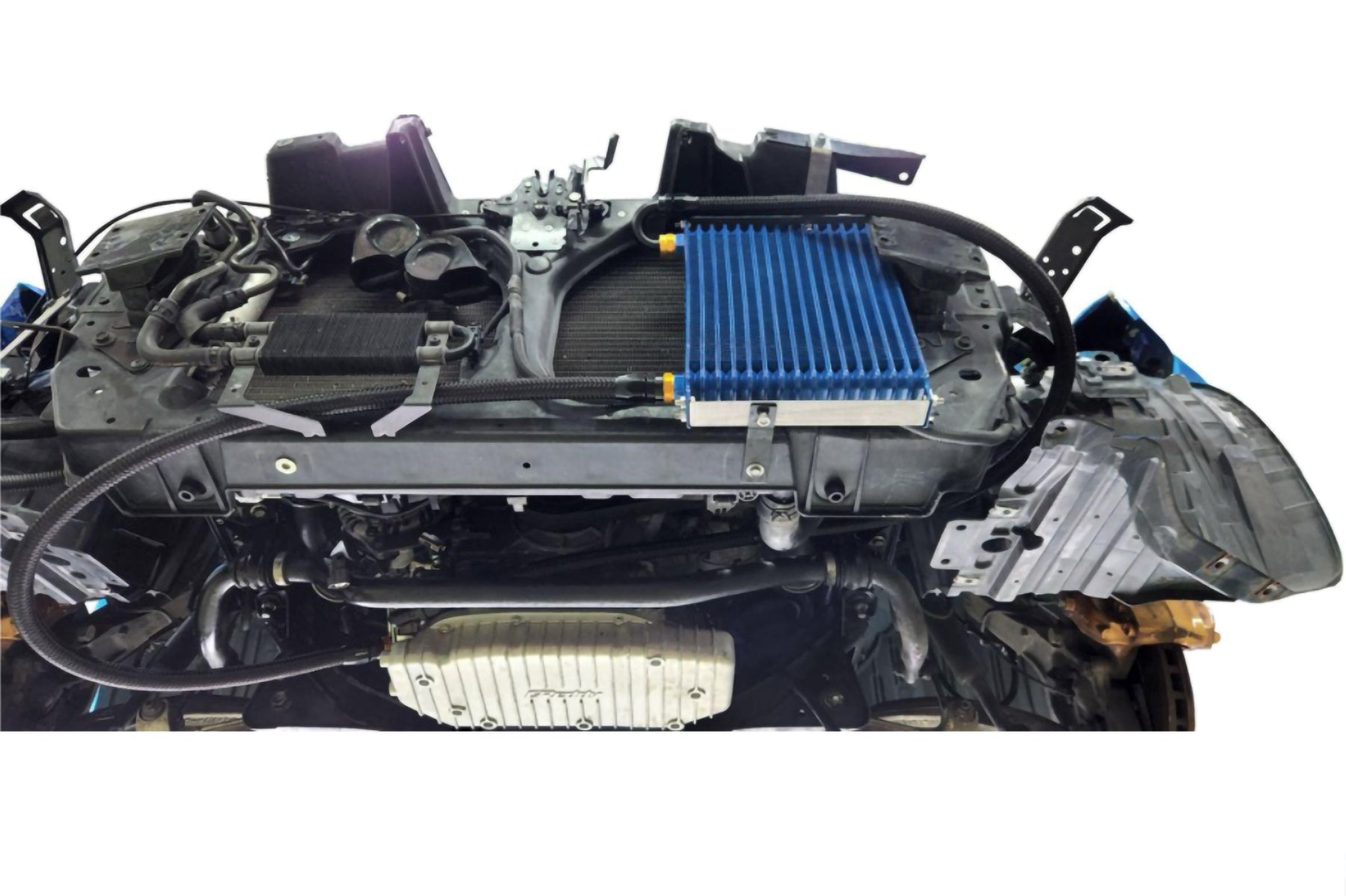

⚫︎The core size is 16 row, and the mounting position is mounted in front of the radiator.
specification
・Oil cooler core 16 stages (core position: in front of left radiator), clear blue paint, built-in thermostat (operating temperature 75℃ to 82℃±2℃)
・Uses GReddy direct fitting (3 locations)
・For vehicles equipped with GReddy turbo kit (Can also be installed on NA vehicles)
*The performance damper installed on version NISMO cannot be installed.

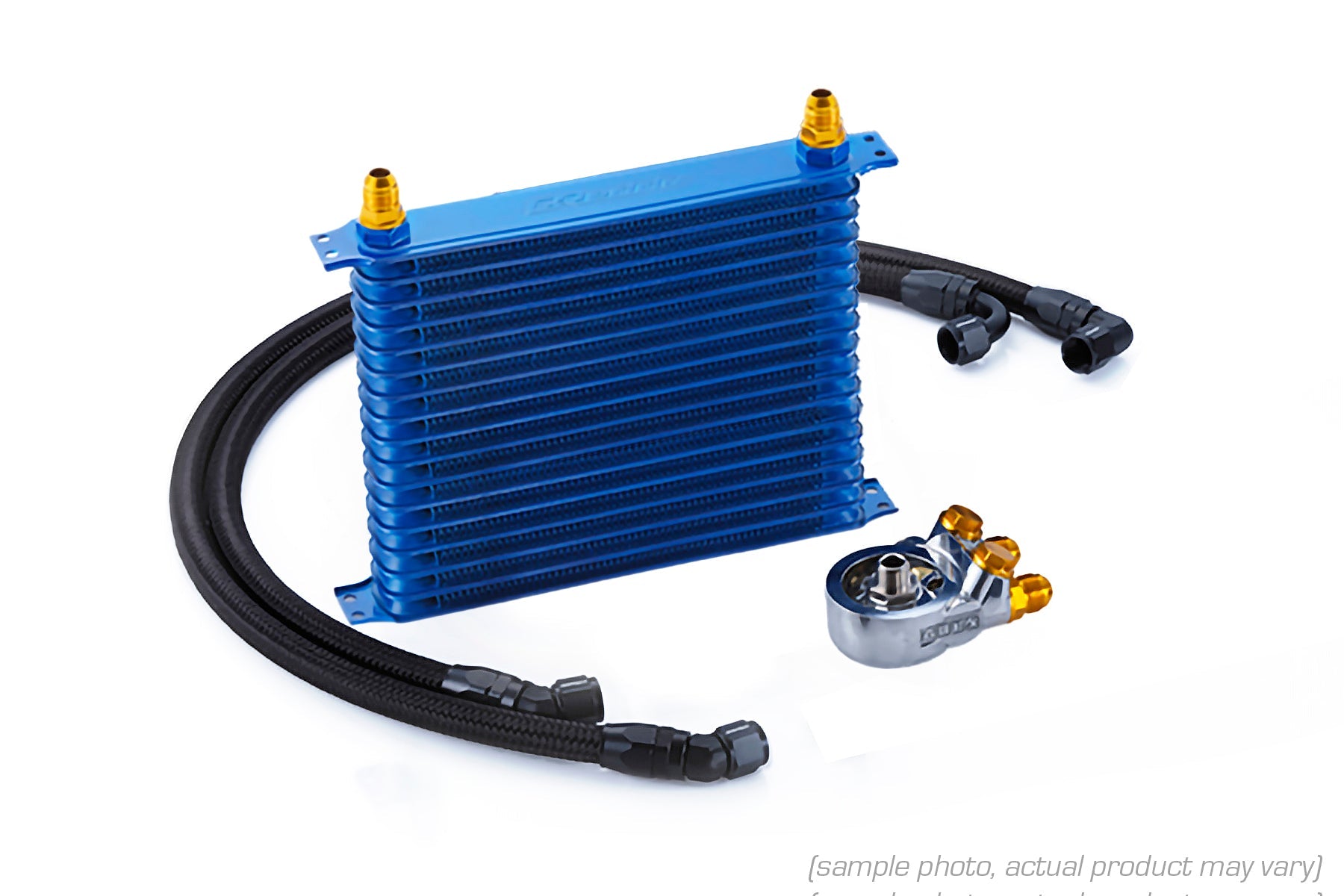

[Product composition]
・Oil cooler body (16 stages: L299 x H233.2 x W50)
・Hose (1130mm / 1400mm)
・Fitting (straight/straight/90°/180°)
・Oil block (TYPE-E)
・Special stay set
・Other short parts set
[Compatible models] Nissan Fairlady Z
Vehicle model: Z33 (late model)Engine model: VQ35HR
Year: 2007.1 - 2008.11
*VQ35DE cannot be installed
*VQ35HR modified 3.8L (380RS) not confirmed
TRUST CODE: 12024639
