Oil Cooler Kit Std. VAB (A-C) 13-Row JDM Spec
SPECIAL ORDER
Part #: 12064611
GReddy standard 13-row JDM spec oil cooler kit for the Subaru WRX STI (VAB, A-C).
Product Features
- An ideal oil cooler that has succeeded in increasing heat dissipation and reducing pressure loss
- A special extraction pipe was developed with consideration to safety in routing around the exhaust manifold

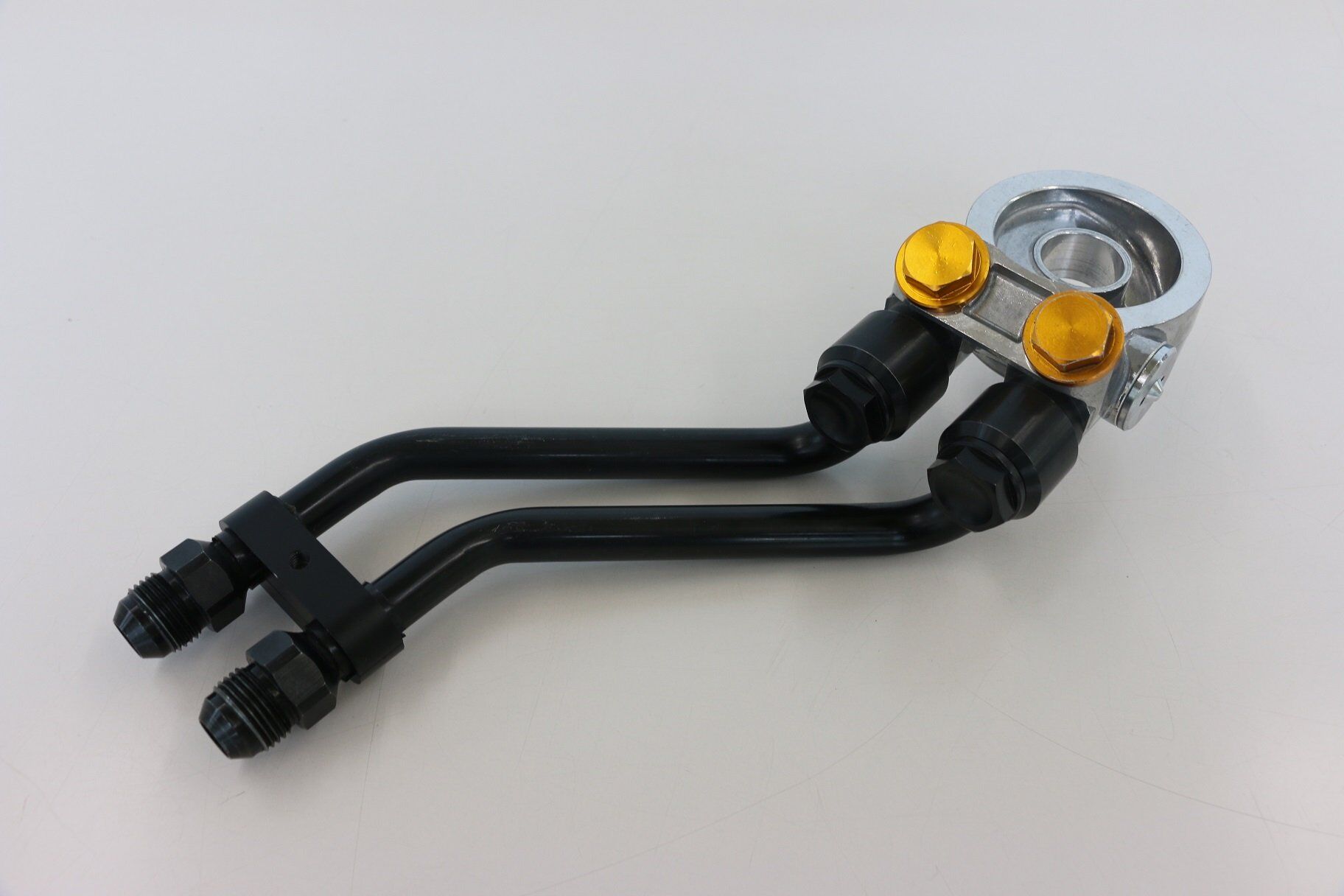

Oil Line Pipe
The oil cooler kit has a structure in which a block is placed at the oil element installation part to take out the oil. However, the oil outlet of the EJ engine is surrounded by the exhaust manifold, making it extremely susceptible to heat. In the worst-case scenario, we have determined that the mesh hose that comes with the regular kit is extremely dangerous, as the hose may be damaged. Therefore, we have developed a kit that can be used safely even on the harshest circuits by using a metal pipe instead of the usual mesh hose.
Compatible Models
Chassis: VAB (A-C) "Zenki" (WRX STI)
Engine: EJ20
Year: 2014.08-2020.04
Specification
- Oil cooler core: 13 rows, L600 x H284 x W66mm (right-hand front bumper)
- Built-in thermostat (operating temperature 75°C to 82°C ±2°C)
- Reference working time: 4-5 hours
Kit Includes
- Oil cooler core (13 rows)
- Oil line extraction pipe
- Nylon mesh hose
- Trust original black alumite fittings
Notes
- Engines with an M20 x P1.5 center bolt require an oil filter with a 3/4-16 UNF center bolt size (GReddy oil filters OX-01 1500, OX-02 1600 and OX-03 1500 are applicable)
