Oil Cooler Kit Std. VA (D-F) 13-Row JDM Spec Circuit Spec

Sale price$1,480.00

SPECIAL ORDER

Part #: 12064610

GReddy standard 13-row JDM spec circuit spec oil cooler kit for the Subaru WRX STI (VAB, D-F).

Product Features

  • As the second part of the VAB oil cooler kit, a circuit-spec inner fender type has been added

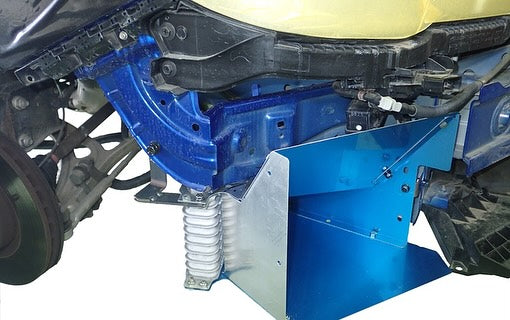

  • By installing the oil cooler core in the inner fender, the cooling air to the radiator is not blocked, and stable cooling performance is demonstrated even under harsh usage conditions such as circuit driving
  • The oil line around the exhaust manifold uses a steel pipe designed specifically for horizontally opposed engines with safety in mind, preventing problems caused by heat
  • An inlet duct (wind guide plate) to efficiently guide the running wind to the oil cooler core and an outlet net to exhaust the air that has passed through the core to the tire house are included

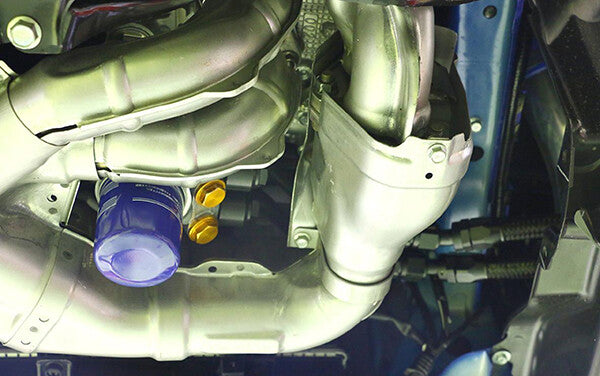

Oil Line Pipe

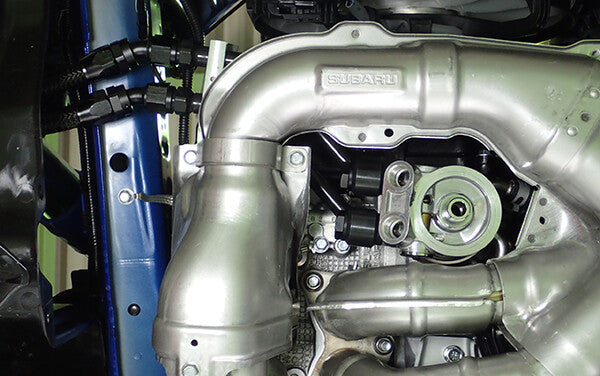

The oil cooler kit has a structure in which a block is placed at the oil element installation part to take out the oil. However, the oil outlet of the EJ engine is surrounded by the exhaust manifold, making it extremely susceptible to heat. In the worst-case scenario, we have determined that the mesh hose that comes with the regular kit is extremely dangerous, as the hose may be damaged. Therefore, we have developed a kit that can be used safely even on the harshest circuits by using a metal pipe instead of the usual mesh hose.

Compatible Models

Chassis: VAB (D-F) "Kouki" (WRX STI)
Engine: EJ20
Year: 2017.06-2020.04

Specification

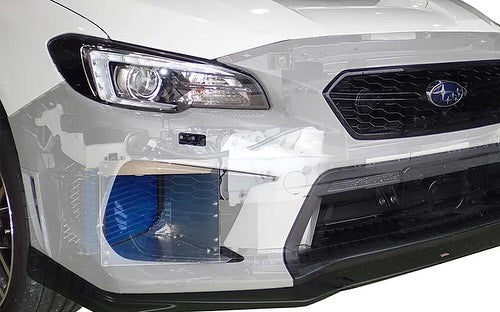

  • Core position: in the right inner fender
  • Built-in thermostat (operating temperature 75°C to 82°C ±2°C)
  • Reference working time: 5.0 hours

Kit Includes

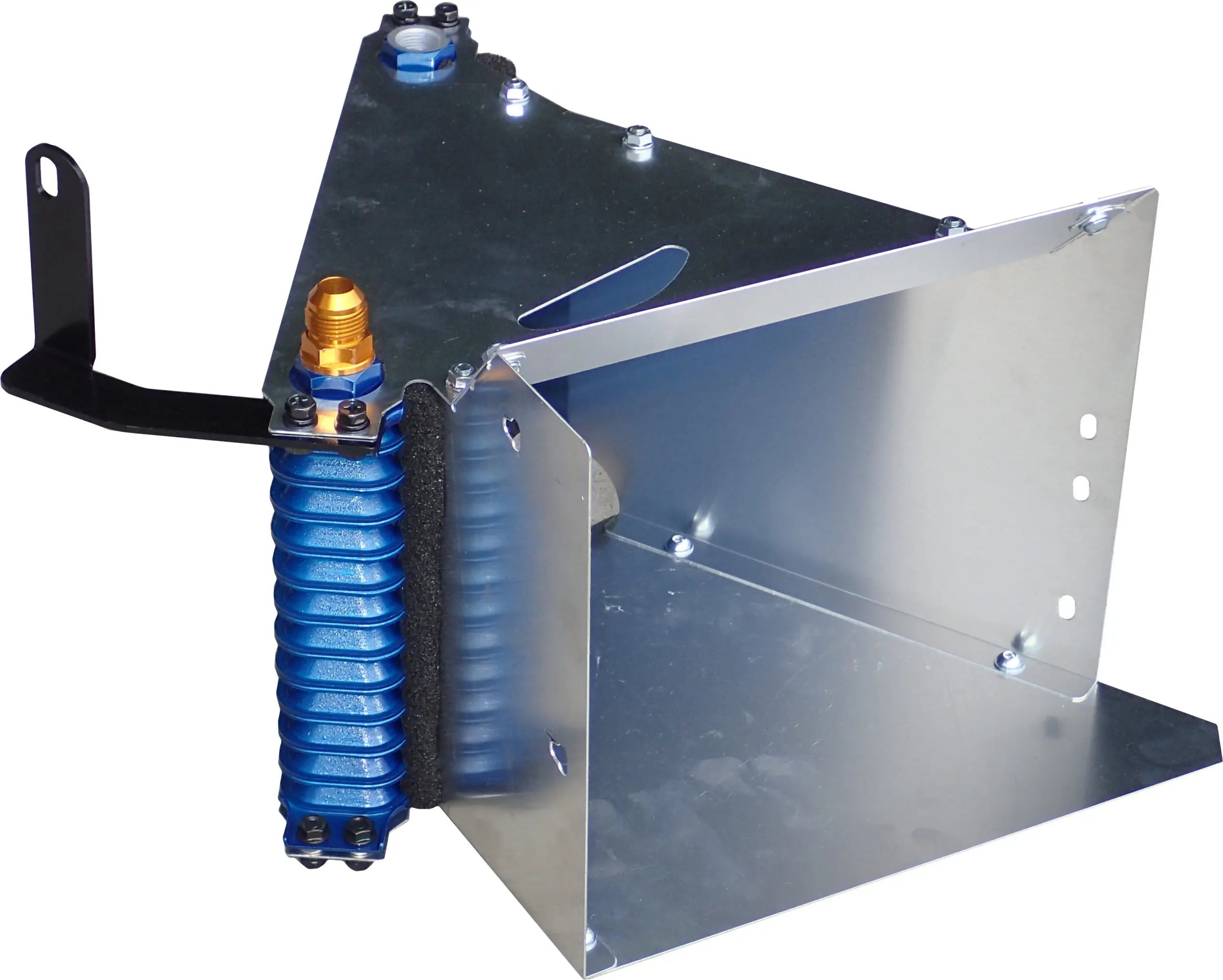

  • Core body (13 rows)
  • Nylon mesh hose (770mm / 540mm)
  • Trust original fittings, black anodized finish (90° / 45° / 45° / 180°)
  • Oil block (Type-E)
  • Inlet duct (wind guide plate)
  • Outlet net

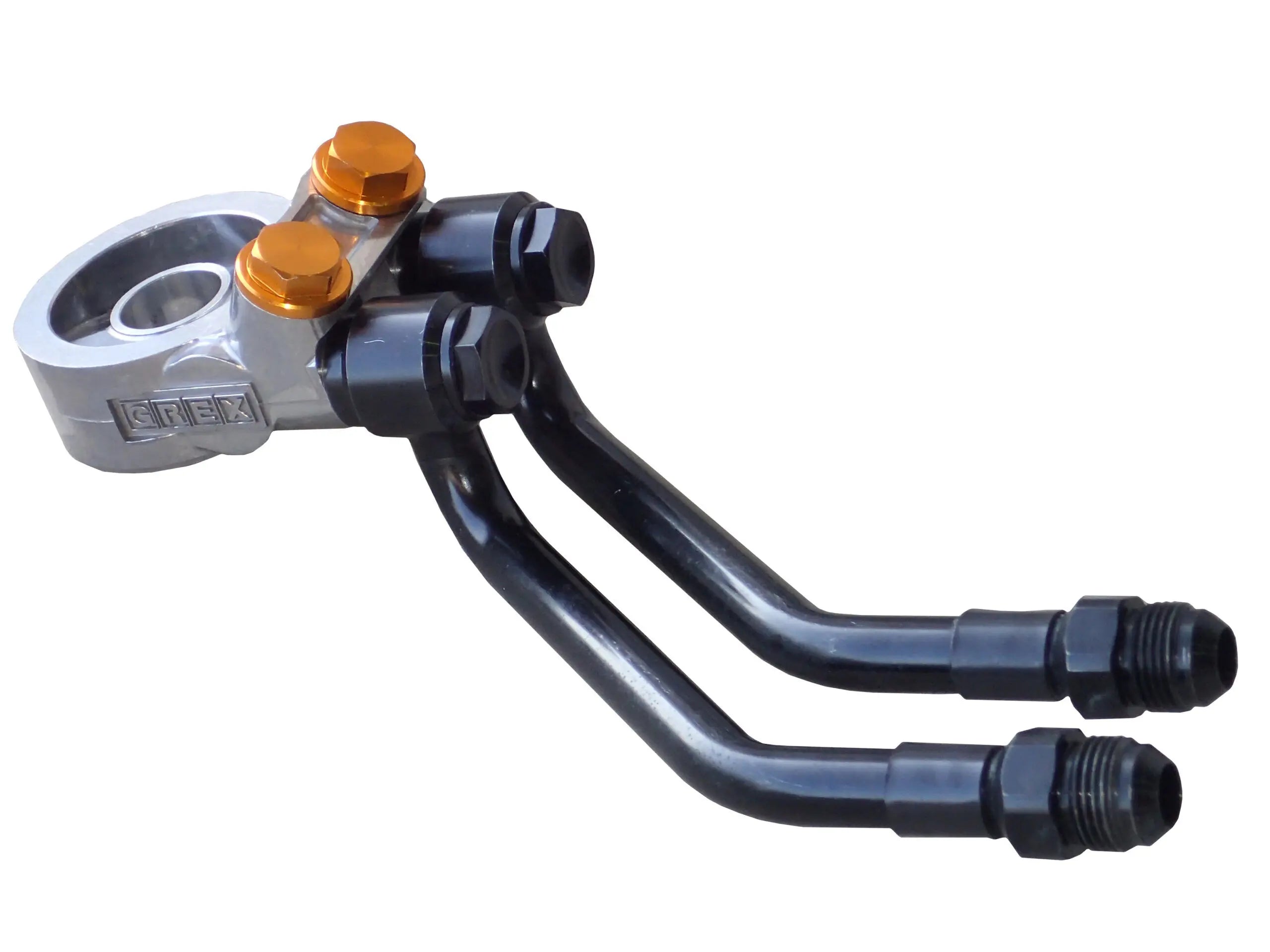

  • Pipe set for oil line removal
  • Dedicated stay set

Notes

  • The resonator must be removed
  • Cannot be installed at the same time as the GReddy intercooler
  • Undercover, mudguard and bracket (front center LWR) need to be processed
  • To install the outlet net, it is necessary to process the front mudguard
  • Engines with an M20 x P1.5 center bolt require an oil filter with a 3/4-16 UNF center bolt size (GReddy oil filters OX-01 1500, OX-02 1600 and OX-03 1500 are applicable)
