GReddy Intercooler Kit JZA80 Type-23F

Part #: 12010201, 12010202

12010201 – JZA80 Supra Turbo Type-23 Intercooler Kit

Recommended for sports turbines to fully-tuned cars, this intercooler demonstrates high efficiency cooling.

Product Features

• Focusing on efficient cooling, with minimal charge pressure loss, this product supports high-power and high-boost cars.
• The side tanks and aluminum piping of the SPEC-R HG are buffed to a mirror finish, whilst the SPEC-R has a barrel polished finish. Also, the core is treated with a CCP coating, improving its corrosion resistance.
• The SPEC-R uses offset inner fins for high-power and high-boost
• Pressure loss and cooling efficiency have been optimized, making this product good for high performance high-boost tunes.

Specifications

• Core Type: TYPE23F
• Core Size: H302/L600/W100
• Mount Position: Forward of Radiator

Model: SUPRA

• Car Type: JZA80
• Year: 93.05～02.08
• P/N: 12010201


Remarks

• For stock turbo only.
• Remove Active spoiler
• Not compatible with cars with VVTi
• AIRINX SET required (TY-M018B, M019B)
• Only For MT
• * Can be used with an oil cooler kit

Specifications

• Core Type: TYPE23F
• Core Size: H302/L600/W100
• Mount Position: Forward of Radiator

Model: SUPRA

• Car Type: JZA80
• Year: 93.05～02.08
• P/N: 12010202


Remarks

• Only For GReddy Turbo Kit
• Remove Active spoiler
• Not compatible with cars with VVTi
• Only For MT
• * Can be used with an oil cooler kit

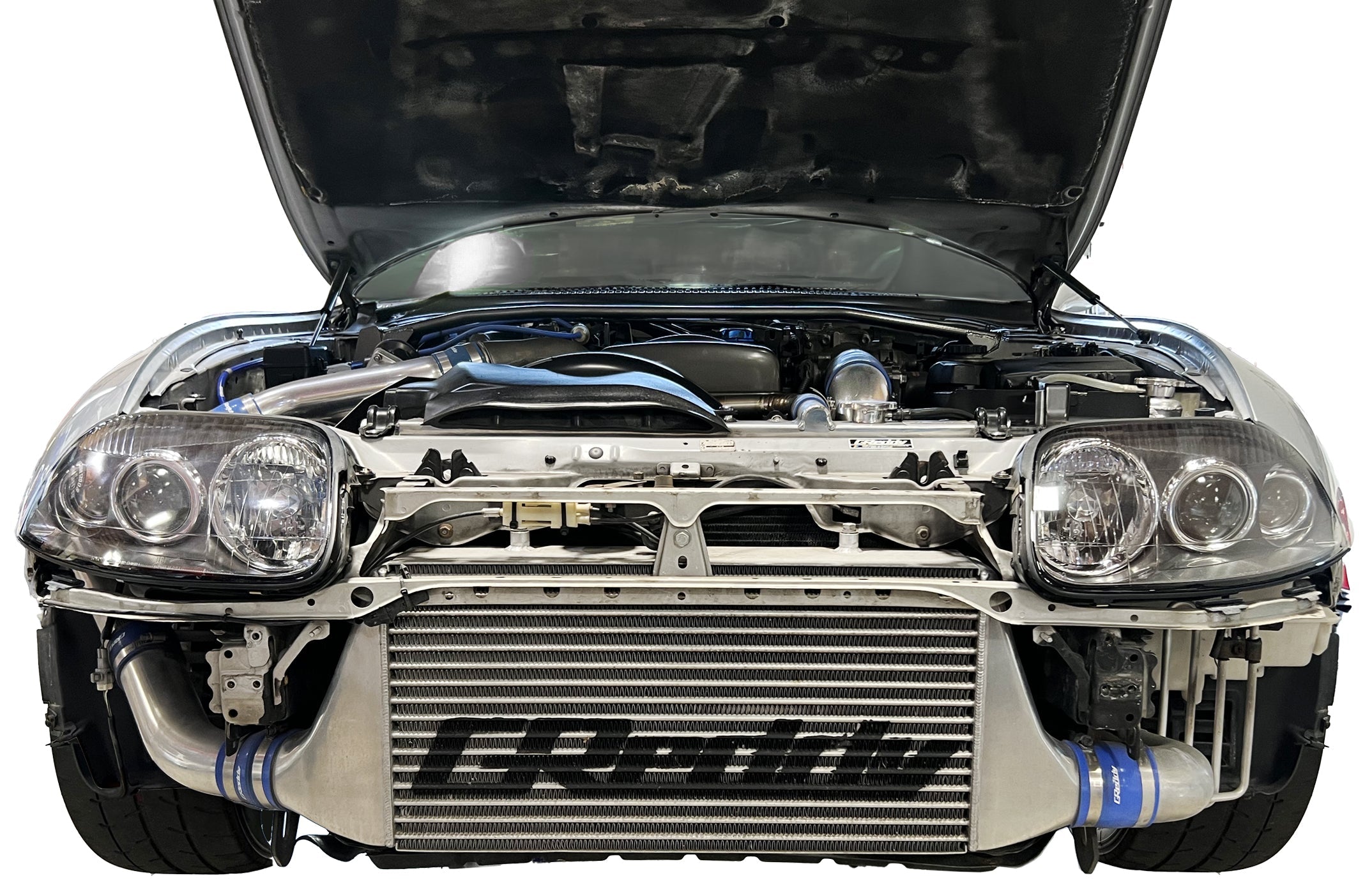

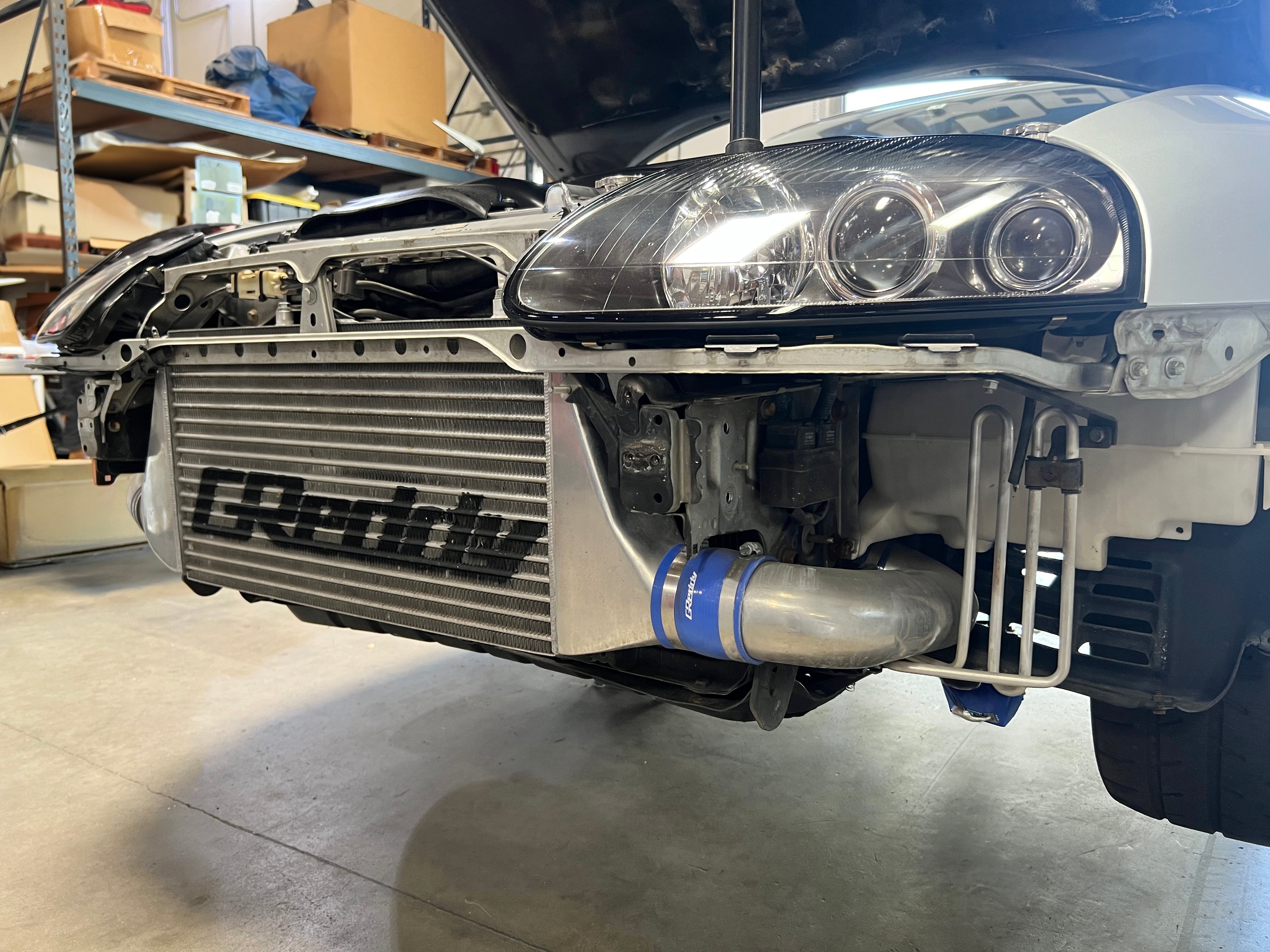

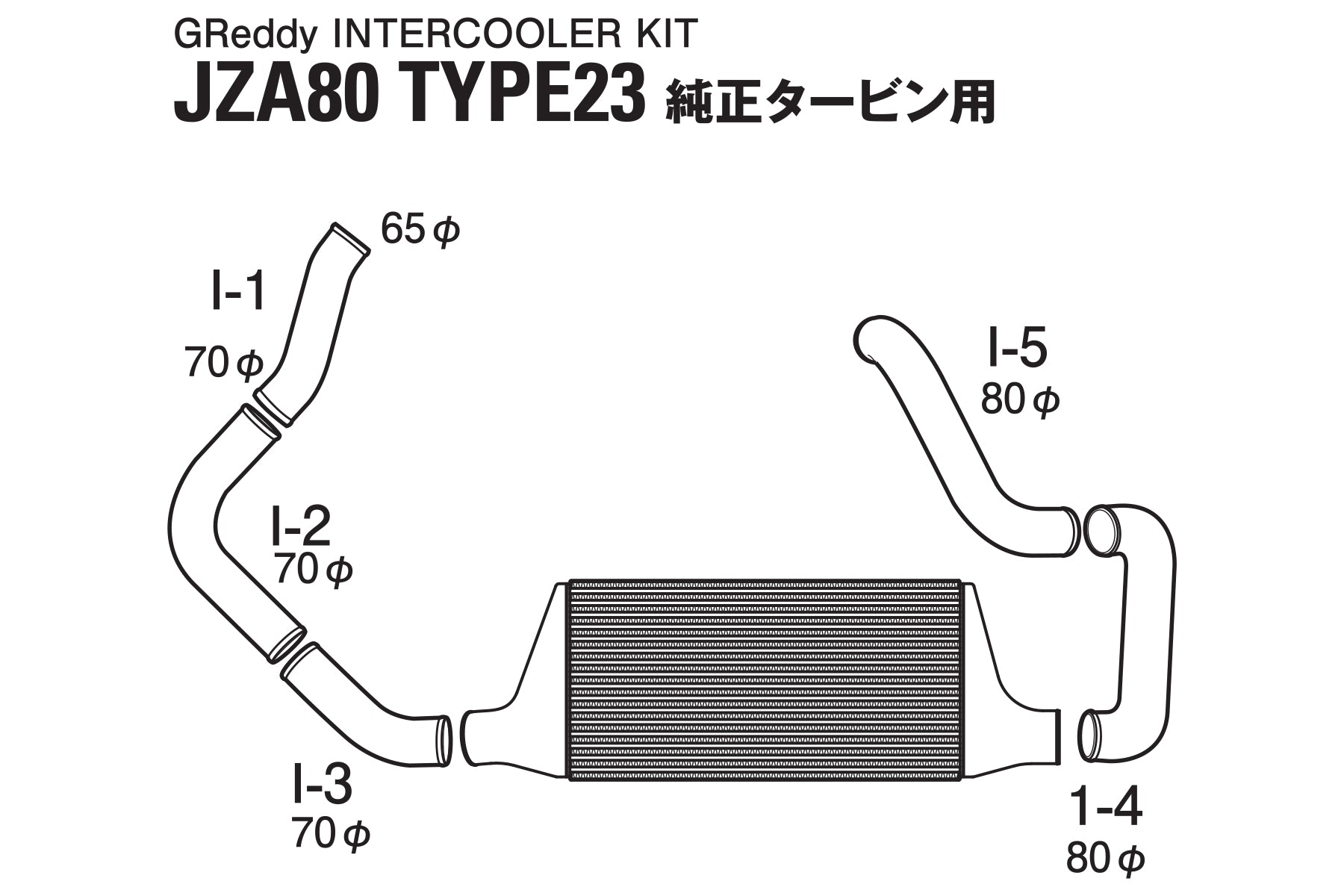

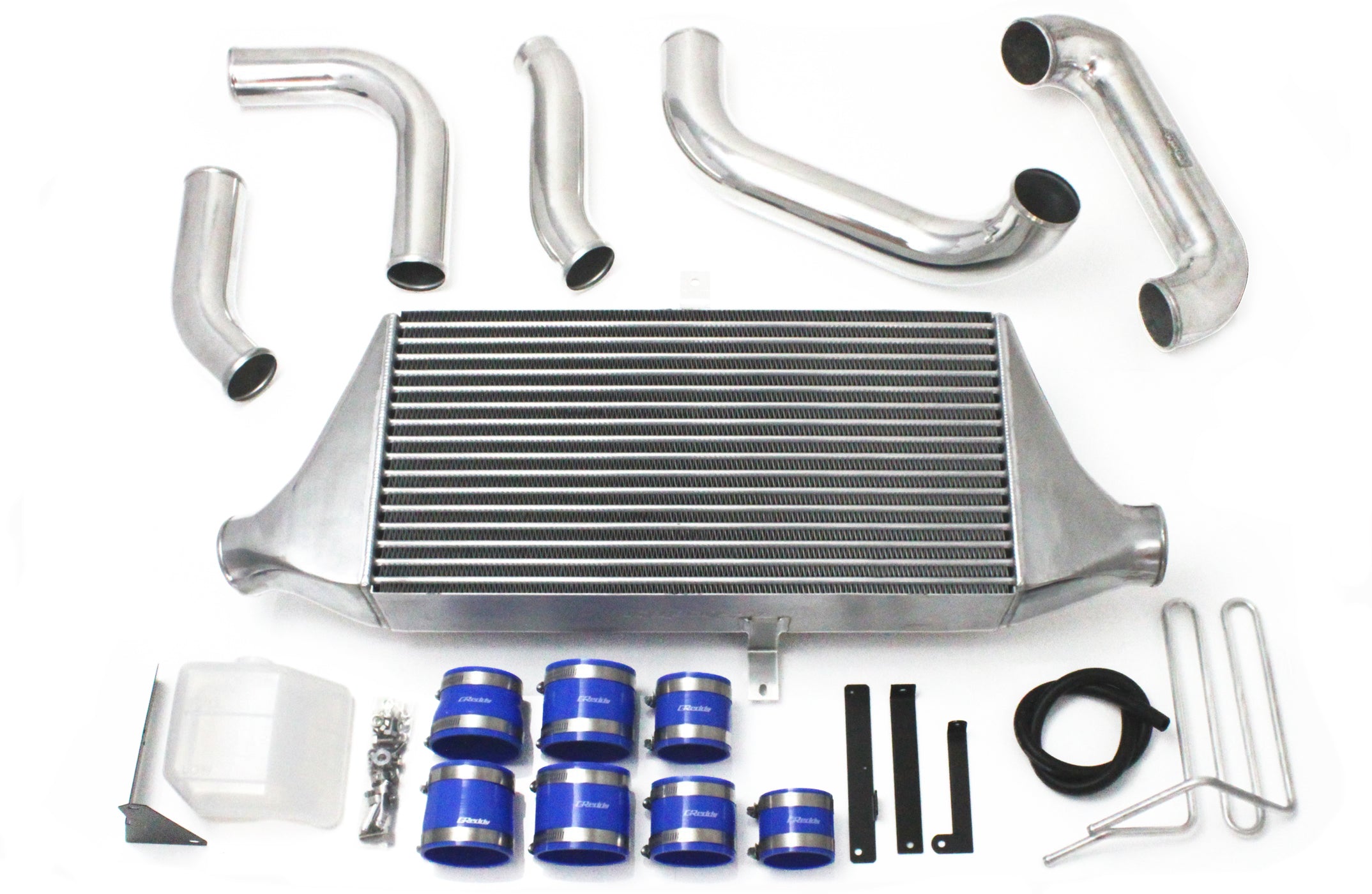

The GReddy Type-23 upgraded, front-mounted Intercooler kit for the Toyota (JZA80) Turbo Supra features our renowned, lightweight, tube and fin, 3-row air to air core, that measures H302xL600xW100mm. The core is capped off with polished, application-specific cast-aluminum end-tank and the kit includes mounting hardware, classic blue GReddy silicone hoses and mandrel-bent aluminum piping (along with a specially cast charge pipe for the JZA80 chassis.) This inclusive kit also includes a modified power-steering cooler pipe and a replacement radiator overflow tank.

GReddy Type-F cores feature a high heat-dissipating "off-set, inner-fin" technology. They are recommended for medium to high boost levels on higher horsepower or upgraded turbo engines. The larger internal surface area provides a superior cooling efficiency for radiating excessive heat and minimizing heat soak. The GReddy Type-F intercooler is a light-weight tube and fin design.

Some Spec R kits are labeled "HG" or High Grade; these kits feature piping and end-tanks that have been hand-polished to a mirror finish for the ultimate in aesthetic quality.

*For competition (race) use ONLY. Check legality of aftermarket products with your local state, county, city authorities before purchasing.
**This product is illegal to be driven on public roads in the USA.
