GReddy Type A Shift Knobs - Polished

Sale price$95.00

Type or Bundle: A02 - Low Type (std. / rev. lockout type)

Type or Bundle



Compatible with many Japanese manual transmissions (with included inserts)






* Add on an Optional Shift Knob Cover for  Type-A Shift Knob -p/n 18001720

Sold Separately



 ...and for that "retro"-look, also see our classic BNOS GREX Shift Knob Emblems (here)

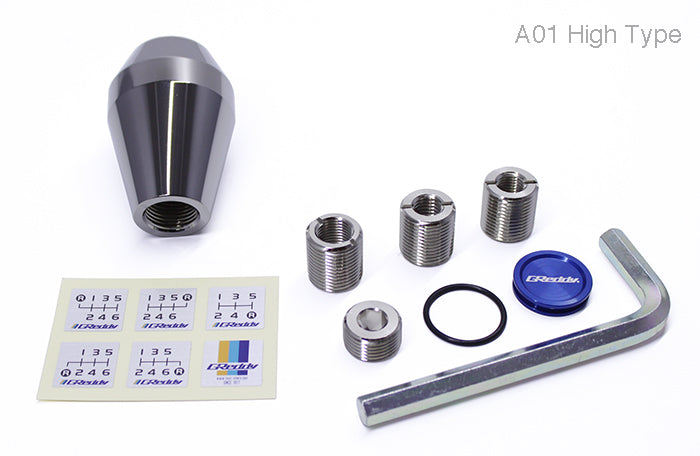

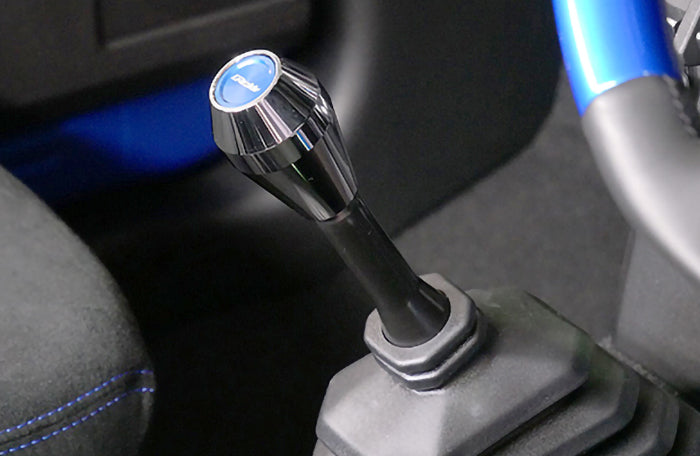

A01 General purpose "High Type" - p/n 14500571


  "High Type" - where the shift knob sits higher up above the shifter threads (standard type shift lever, without reverse lock-out switch)
  5-speed MT cars and 6-speed MT cars where reverse unlocking is not related to knob shape

  Shift lever screw size 3 types [M10 x P1.25] [M10 x P1.5] [M12 x P1.25] adapter screws are included.  (Optional Auto Trans. M8xP1.25 sold separately)
  Example of conformity
    ● All 5-speed transmission vehicle
    ● 6-speed like:
[Toyota SXE10, Nissan S15, Z33, Z34, Mazda NB8, NCEC, ND5RC, SE3P, Honda AP1, AP2, FK, Mitsubishi CT9A, CZ4A (SST, etc.)]

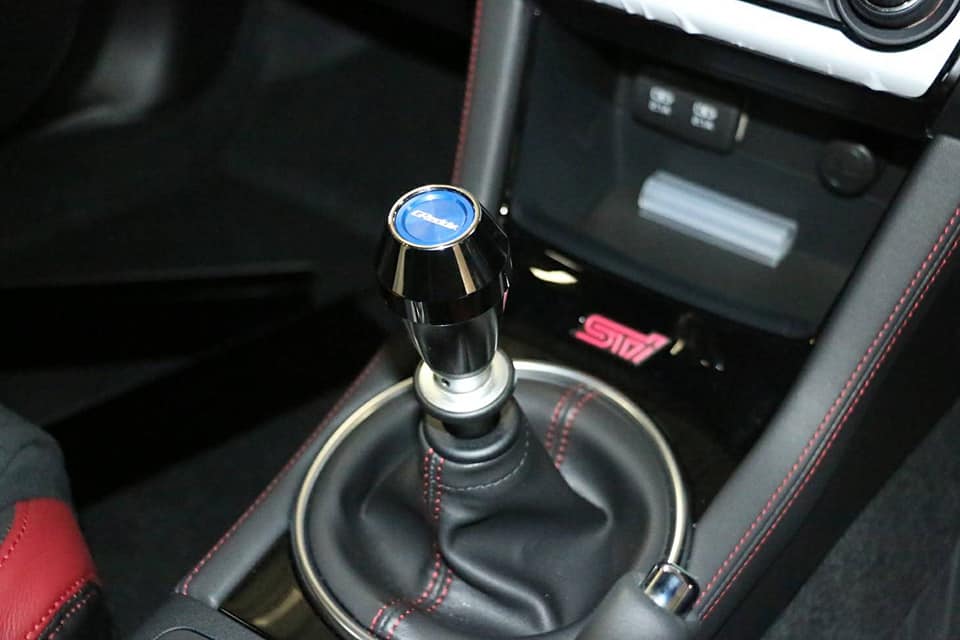

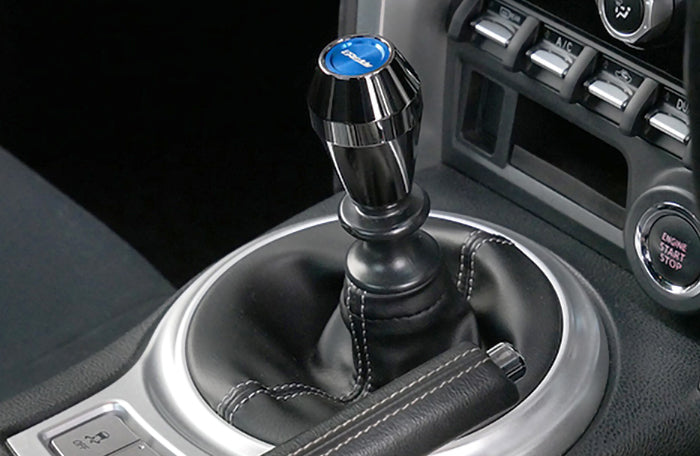

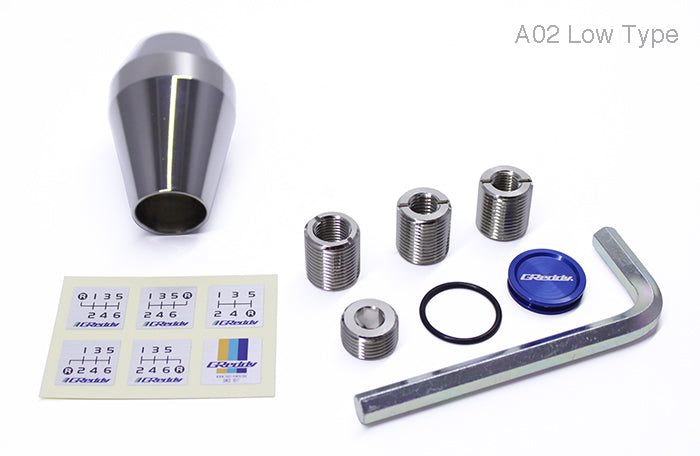

A02 General purpose "Low Type" - p/n 14500572

   "Low Type" - where the threads start higher up on the knob, so the shift knob sits lower on the shifter
                        (ideal for many shifter with a reverse lock-out switch)
   General-purpose 6-speed MT car with reverse lock lever entering the knob
   The outer diameter of the part where the lock lever enters the knob can be up to 22 mm diameter.
   Example of applications:
[Toyota JZA80, ZN6 FRS/BRZ/86, Nissan BNR34, Subaru WRX/STI GDB, GRB, VAB, ZC6, etc.]

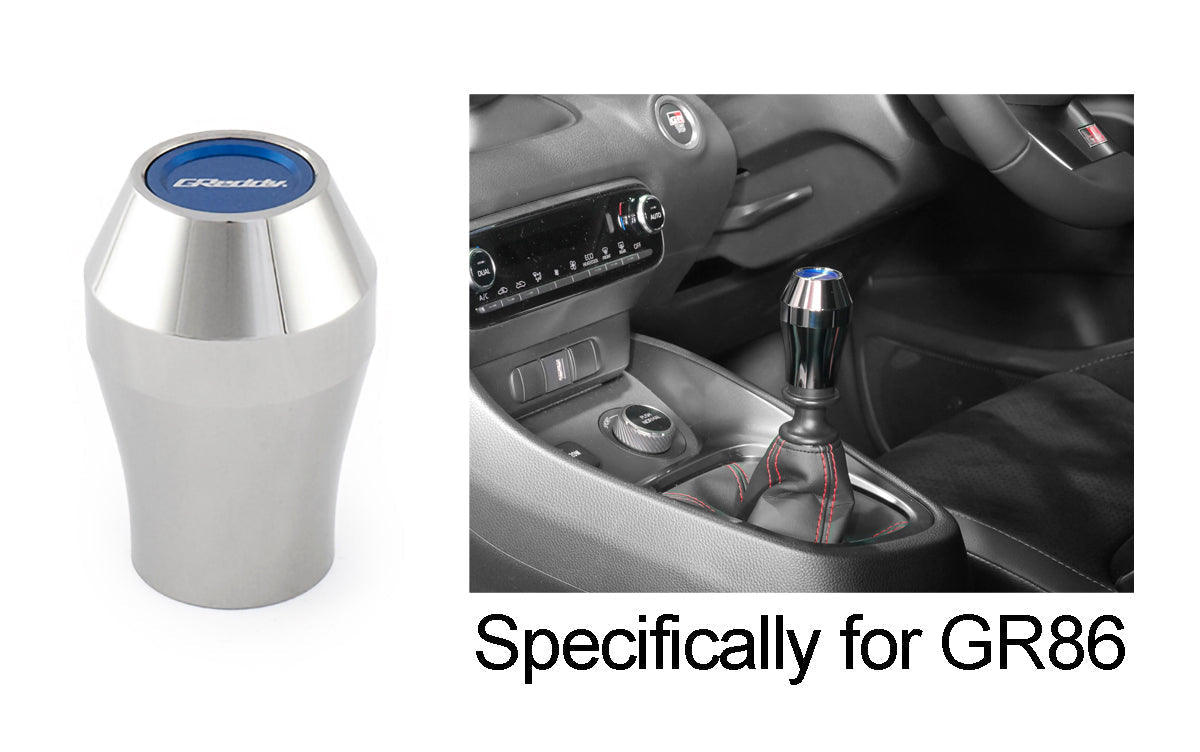

A04 GR Type - Specifically for GR86 & GR Yaris - p/n 14500573

   "GR Type" - Specifically designed for new GR 86 and GR Yaris models
                        (ideal for many shifter with a 28mm Dia. reverse lock-out switch)
   GR 6-speed MT car with reverse lock lever entering the knob
   The outer diameter of the part where the lock lever enters the knob can be up to 28 mm diameter.

   Example of applications:
[Toyota GR86, GR Yaris]

- -- - --- - -- -


GReddy Traditional Diamond Shape Shift Knob - Polished
-  Anodized blue GReddy badge with o-ring
- Supports 3 types of genuine shift lever screw sizes (M10P1.25, M10P1.5, M12P1.25).

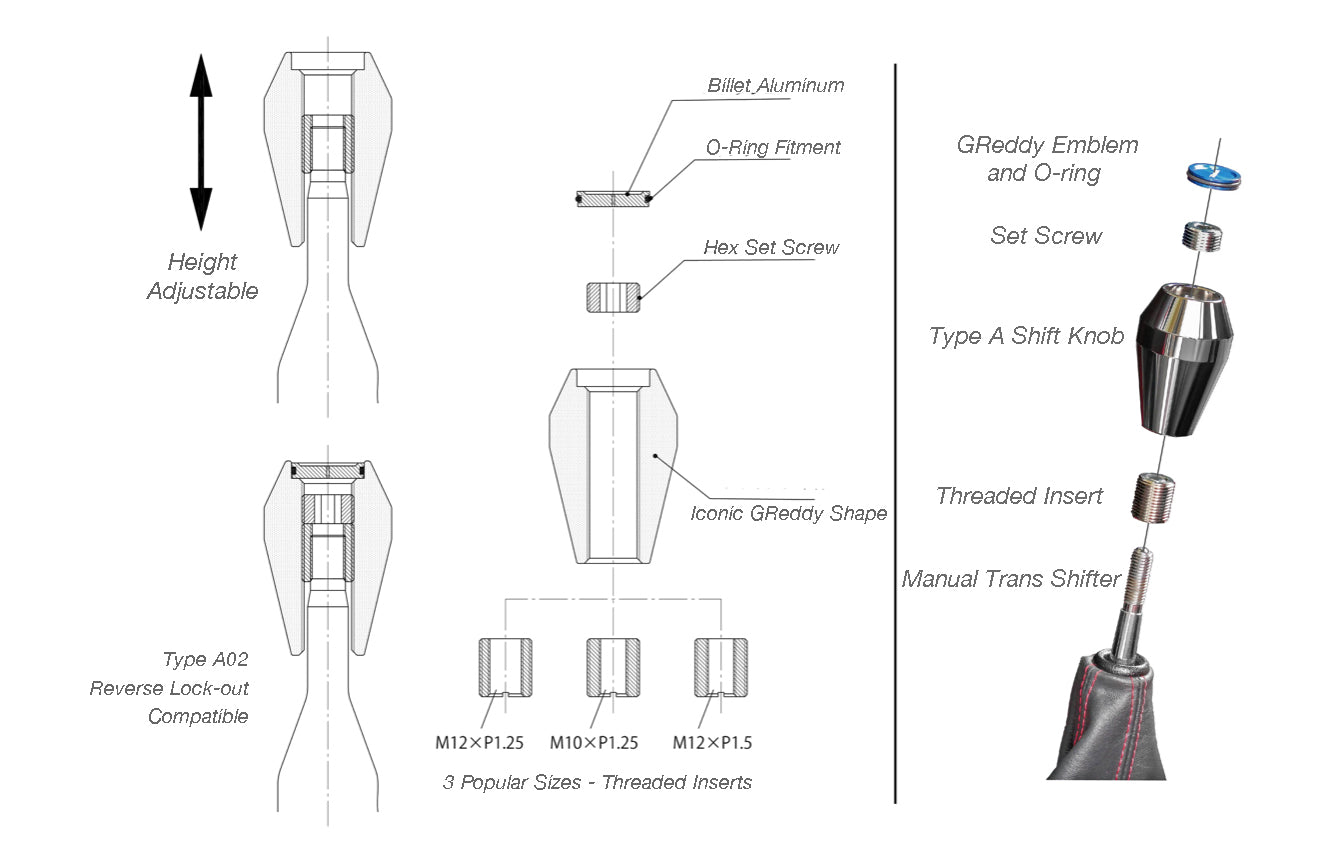

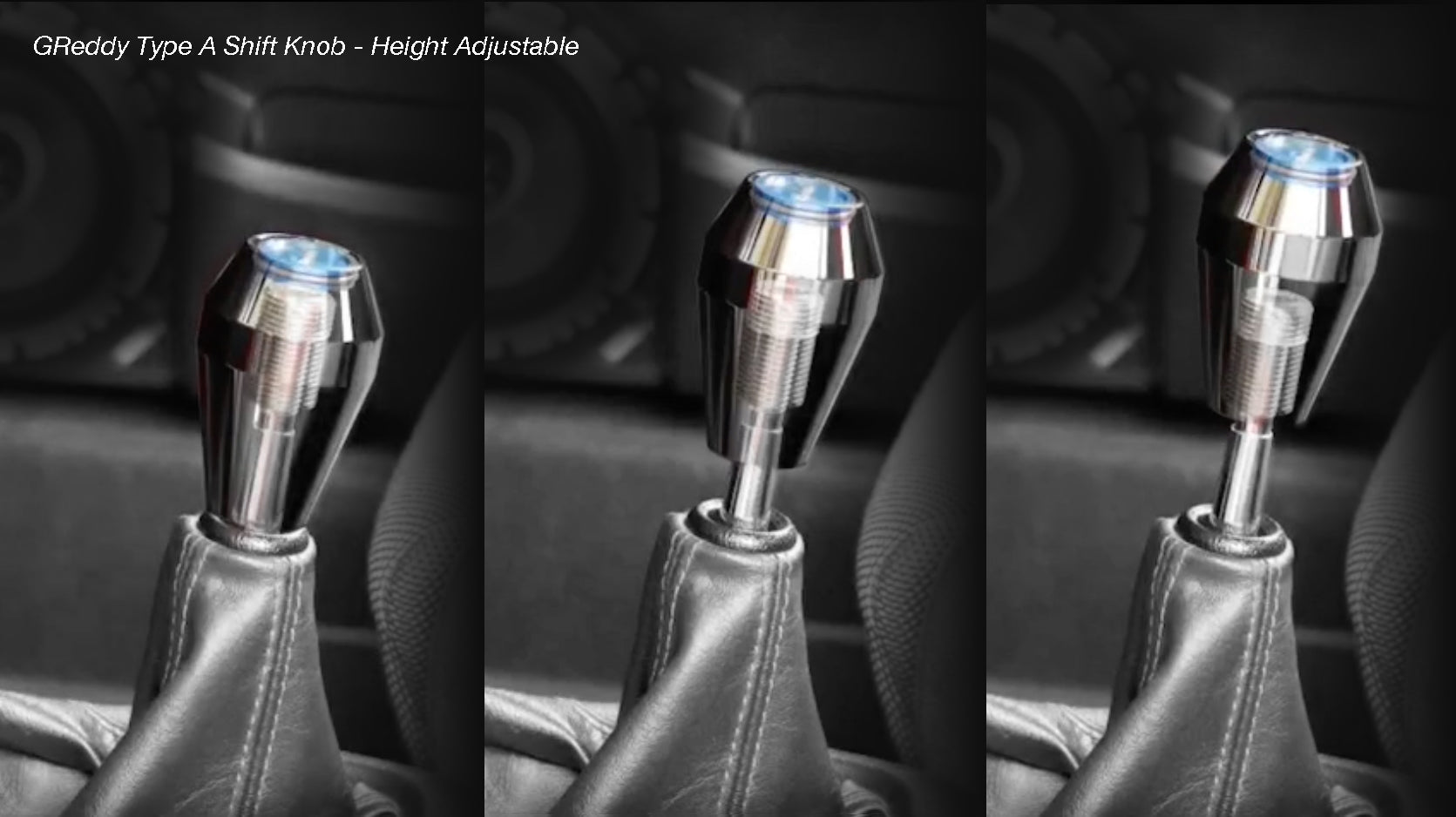

- The mounting height can be adjusted.
  (with included jam nut and 8mm allan wrench)
  (Adjustable range: Type A01 approx. 30 mm / Type A02 approx. 15 mm,)
- Highly rigid mounting with a metal adapter.
- Five types of shift pattern decals included.

<Installed weight> A01: 197-203g, A02: 188-194g, & A04 185-191g

Originally designed for TRUST/GREX sequential transmissions in the 1990s. You can now feel the comfort and precision of our retro billet, CNC shift knobs. The new inner-screw inserts make installation height adjustable, simple and secure. The traditional knobs offer excellent comfort for both side and overhand grips.

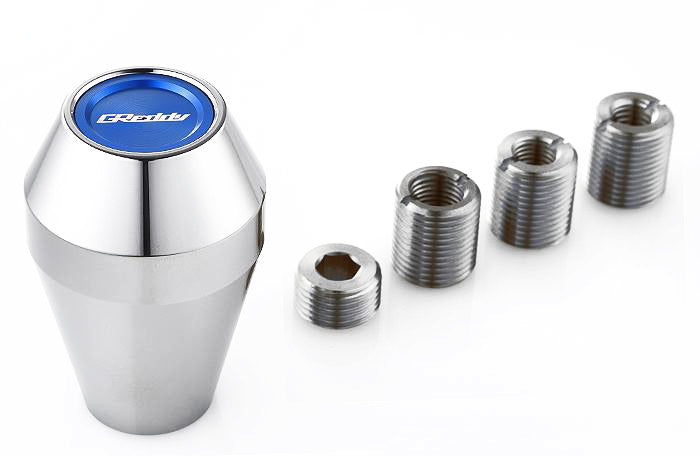

3 Included Threaded Adapters :
   M10 x P1.25  - most Nis, Inf, Mit, & Maz
   M10 x P1.5   - most Hon & Acu
   M12 x P1.25  - most Toy, Lex, Sci, & Sub

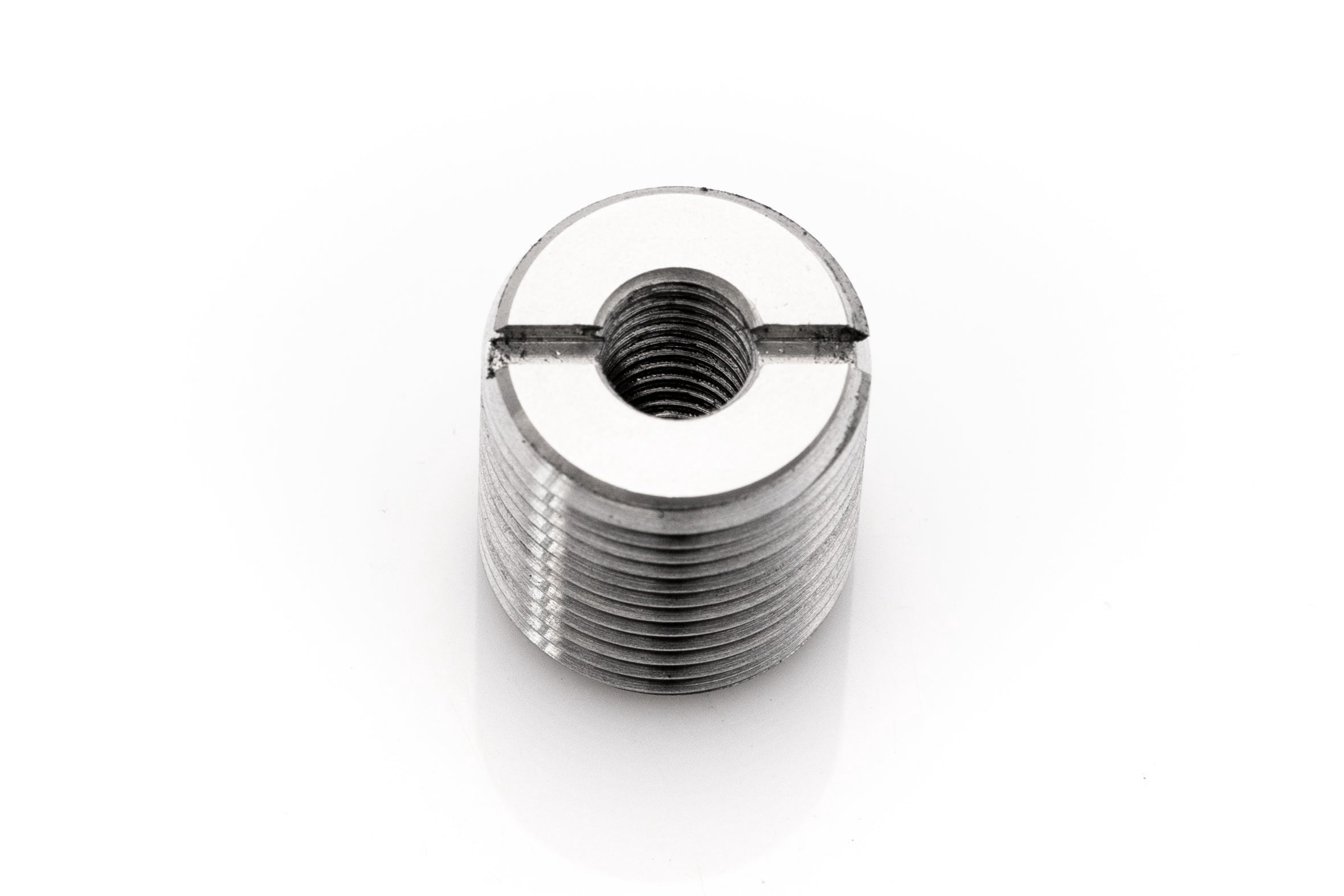

   (Optional Auto Trans. M8xP1.25 sold separately)



Each GReddy CNC Stainless Shift Knob includes 3 of the most common thread sizes inserts to suit most Japanese manual transmission shifters.  Compatible with 5 and 6 speeds with various gate patterns.



__ _ __ _ __



Optional GReddy Shift Knob Cover for Type A Knobs - sold separately
   p/n 18001720

   - GReddy shift knob Silicon cover for TYPE A Shift Knobs.
   - Recommended for measures against heat, scratches, and makeovers.
   - Carbon black design.
